Network Surveillance Cameras

Specifications

Camera
Image Sensor
1/2.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB /128MB
Min Illumination
0.005 Lux/F1.5 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)
S/N Ratio
>56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 109?~30?, Vertical: 56?~17? (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
88m (wide) / 290m (tele)
Observe (63px/m)
35m (wide) / 116m (tele)
Recognise (125px/m)
18m (wide) / 58m (tele)
Identify (250px/m)
6m (wide) / 29m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Resolution must be at 4.0MP or lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Built-in MIC / Audio Compression – G.711a; G.711Mu; PCM; G.726; G.723
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<10.5W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance N/A Series Professional AI Series Camera Type Bullet Housing Metal Pan/Tilt/Rotation Pan: 0? ~360 ?; Tilt: 0? ~90?; Rotation: 0? ~355? ePoE No Dimensions 244.1mm x 79.0mm x 75.9mm Net Weight 0.82kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 150 mm Height 160 mm Depth 310 mm Weight 1.20 kg

Specifications

Camera
Image Sensor
1/2.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.007 Lux/F1.5 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 109?~30?, Vertical: 56?~17? (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
88m (wide) / 290m (tele)
Observe (63px/m)
35m (wide) / 116m (tele)
Recognise (125px/m)
18m (wide) / 58m (tele)
Identify (250px/m)
9m (wide) / 29m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression – G.711a; G.711Mu; G726
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<8.9W Operating Conditions -30?C ~ +60?C / ?95% RH Ingress Protection IP67 Vandal Resistance N/A Series Professional AI Series Camera Type Turret Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360?, Tilt: 0? ~ 78?, Rotation: 0? ~ 360? ePoE No Dimensions ?122mm x 108mm Net Weight 0.715kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 156 mm Height 156 mm Depth 137 mm Weight 0.90 kg

Specifications

Camera
Image Sensor
1/1.8?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1 GB / 4 GB
Min Illumination
0.001 Lux/F1.4 (Color), 0.0002 Lux/F1.4 (IR on)
S/N Ratio
>56 dB
Infrared System
4 x Infrared LED, 10m range (ANPR) 30m range (video), Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal Lens
Lens / Iris
2.7 ~ 12mm F1.4 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 92?~46?, Vertical: 49?~26?, Diagonal: 109?~ 53?
Focus
Auto / Manual / Area Focus
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
720p (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264M / H.264H / H.264B / H.265 / MJPEG / H .264M
Bit Rate
H.264B / H.264M / H.264H / H.265: 2,179 kbps?13,074 kbps, MJPEG: 6,537 kbps?39,223 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W / IR filter
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Manual / Regional Custom / Outdoor / Natural / Street Lamp
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Speed, Colour, Type etc.)
Vehicle Colour Detection
Yes
Vehicle Size Detection
Yes
Network
Ethernet
RJ-45 (10/100/1000 Base-T)
Protocol
HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic (3m Pick-up Distance) & Built-in Speaker
Alarm Interface
2 Input / 2 Output
RS485
2x ports
Edge Storage
MicroSD Card Slot (up to 256GB)
Interoperability
ONVIF / ITSAPI / CGI / P2P
Environmental
Power Supply
12VDC / PoE+ (802.3at)
Power Consumption
<6W (standby), <12W (light), <17W (Speaker and Red/Blue lights) Operating Conditions -30? ~ +65? C / 10 ~ 90% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance N/A Series Traffic AI Series Camera Type Bullet Housing Metal Pan/Tilt/Rotation N/A Tri-Axis Mounting No ePoE No Dimensions 395 x 121 x 128mm Net Weight 2.3kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 240 mm Height 233 mm Depth 447 mm Weight 3.50 kg

Specifications

Camera
Image Sensor
1/1.8?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1 GB / 4 GB
Min Illumination
0.001 Lux/F1.6 (Color), 0.0002 Lux/F1.6 (IR on)
S/N Ratio
>56 dB
Infrared System
4 x Infrared LED, 30m range (ANPR) 60m range (video), Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal Lens
Lens / Iris
8 ~ 32mm F1.3 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 40?~15?, Vertical: 22?~9?, Diagonal: 47?~ 17?
Focus
Auto / Manual / Area Focus
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
720p (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264M / H.264H / H.264B / H.265 / MJPEG / H .264M
Bit Rate
H.264B / H.264M / H.264H / H.265: 2,179 kbps?13,074 kbps, MJPEG: 6,537 kbps?39,223 kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W / IR filter
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Manual / Regional Custom / Outdoor / Natural / Street Lamp
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
N/A
IVS
IVS
Yes
Intelligent Functions
Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Speed, Colour, Type etc.)
Vehicle Colour Detection
Yes
Vehicle Size Detection
Yes
Network
Ethernet
RJ-45 (10/100/1000 Base-T)
Protocol
HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic (3m Pick-up Distance) & Built-in Speaker
Alarm Interface
2 Input / 2 Output
RS485
2x ports
Edge Storage
MicroSD Card Slot (up to 256GB)
Interoperability
ONVIF / ITSAPI / CGI / P2P
Environmental
Power Supply
12VDC / PoE+ (802.3at)
Power Consumption
<6W (standby), <12W (light), <17W (Speaker and Red/Blue lights) Operating Conditions -30? ~ +65? C / 10 ~ 90% RH Ingress Protection IP67 Weather Resistance Yes Vandal Resistance N/A Series Traffic AI Series Camera Type Bullet Housing Metal Pan/Tilt/Rotation N/A Tri-Axis Mounting No ePoE No Dimensions 395 x 121 x 128mm Net Weight 2.3kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 240 mm Height 233 mm Depth 447 mm Weight 3.20 kg

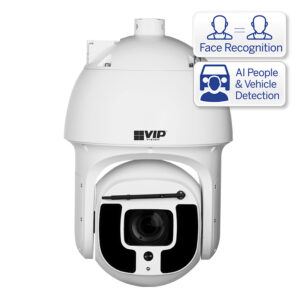

Specifications

Camera
Image Sensor
1/1.8″ 8.0MP STARVIS? CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
2GB / 8GB
Min Illumination
0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 55dB
Infrared System
10 x Infrared LED, 450m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris
Field of View
Horizontal: 64.0? ~ 2.0? (40x Optical Zoom)
Focus
Auto / Manual / 1m Min. Focus Distance
DORI
Detect (25px/m)
4400m
Observe (63px/m)
1740m
Recognise (125px/m)
880m
Identify (250px/m)
440m
PTZ
Pan / Tilt Range
Pan: 0 ~ 360? (endless) / Tilt: -30 ~ 90? / Auto-flip 180?
PTZ Speed
Preset: Pan: 240?/s; Tilt: 200?/s Manual: Pan: 200?/s; Tilt: 120?/s
Modes / Presets
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Start-up Action
Auto-restore to previous PTZ/lens status
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate
H.265: 256kbps ~10240Kbps – H.264: 512K ~ 16384Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / ATW / Indoor / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra 2D/3D DNR
Picture Control
Flip 180?
Artificial Intelligence
Face Recognition
Supports database up to 10,000 face images
Face Capture
Support
Perimeter Protection
Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)
Auto Tracking
Support
Metadata
Support
People Counting
N/A
Heat Map
N/A
Intelligent Video Surveillance (IVS)
IVS Functions
Abandoned object / Missing object
Event Triggers
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
Region of Interest
Support
Optical Defog
Support
Digital Zoom
16x
Privacy Masking
Up to 24 areas
Image Stabilisation
Electronic
Network
Ethernet
RJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
1 Output (Vpp 75?)
Audio Interface
1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2
Alarm Interface
7 Inputs / 2 Outputs
RS485
Yes
Edge Storage
MicroSD Card (up to 256GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
24VAC / 3A (?25%) / Hi-PoE (IEEE802.3at)
Power Consumption
<48W Operating Conditions -40? ~ +70? C / Less than 90% RH Ingress Protection IP67 Vandal Resistance N/A Series Ultimate AI Series Camera Type PTZ Dome Housing Metal Pan/Tilt/Rotation Pan: 0? ~ 360 ? ; Tilt: -30? ~ 90? ; Rotation: 0? ~ 360? ePoE No Dimensions ?262mm x 415.6mm Net Weight 10kg Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 262 mm Height 415 mm Depth 262 mm Weight 12.00 kg

Specifications

Camera
Image Sensor
1/2.8?? 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Ultra Low Light Colour
N/A
Min Illumination
0.005 Lux/F1.5 (Colour), 0.0005 Lux/F1.5 (B&W), 0 Lux (IR on)
S/N Ratio
> 56dB
Infrared
Yes
Infrared System
3 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.7~13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 99~29?, Vertical: 53~16?
Focus
Fixed
DORI Distance (Note: The DORI distance is a ?general proximity? of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 210m (tele)
Observe (63px/m)
25m (wide) / 84m (tele)
Recognise (125px/m)
13m (wide) / 42m (tele)
Identify (250px/m)
6.4m (wide) / 21m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
2.0MP / 1080p (1 ~ 25fps)
Video Compression
AI H.264/265, Smart H.264+/265+, H.264/+, H.265/+, / MJPEG
Bit Rate
H.264 / H.265: 32 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? at 4.0MP resolution and lower)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Heat Map
Network
Ethernet
RJ-45 (100/1000 Base-T)
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Streaming Method
N/A
Max. User Access
20 (Total bandwidth: 80Mbps)
RTMP Support
Yes
Interface
Video Interface
N/A
Audio Interface
1 input / 1 output (RCA), Compression: G.711a; G.711Mu; G726; AAC
Alarm Interface
1 input (wet contact, 5mA 3~5VDC), 1 output (dry contact1000mA 30VDC, 500mA 50VAC)
RS485
1 port (1200~115,200bps baud rate)
Edge Storage
MicroSD Card (up to 512GB), NAS, Local PC, FTP, SFTP
Interoperability
ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; Genetec
Environmental
Power Supply
12VDC / PoE
Power Consumption
Basic: 3.96W (12VDC); 4.95W (PoE), Maximum (H.265+intelligence on +WDR +IR on + auto focus): 9.2W (12VDC); 11.5W (PoE)
Operating Conditions
-30? ~ +60? C / Less than 95% RH
Ingress Protection
IP68
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Specialty Series
Camera Type
Bullet
Housing
Stainless Steel (SUS304, SUS316L optional)
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
N/A
ePoE
No
Dimensions
215mm x 149mm x 151mm
Net Weight
5kg (Net)
Other
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80?C Db, IECEx: Ex db IIC T6 Gb, Ex tb IIIC T80?C Db
Warranty (Years)
4
Shipping Weight and Dimensions

Includes product packaging

Width
173 mm
Height
121 mm
Depth
300 mm
Weight
3.35 kg
