Hills Antenna 01DY4A-4G VHF 4 Element Yagi Antenna 01DY4A-4G
$98.52 inc GST
The Hills 01DY4A-4G is a 4-element VHF Yagi antenna with an integrated 4G/LTE low-pass filter. Covering Channels 6–12, it delivers 6.5 dB average forward gain, durable aluminium construction, and installer-friendly fold-out elements.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
25 in stock
Description
Reliable VHF Reception with Integrated 4G Filtering

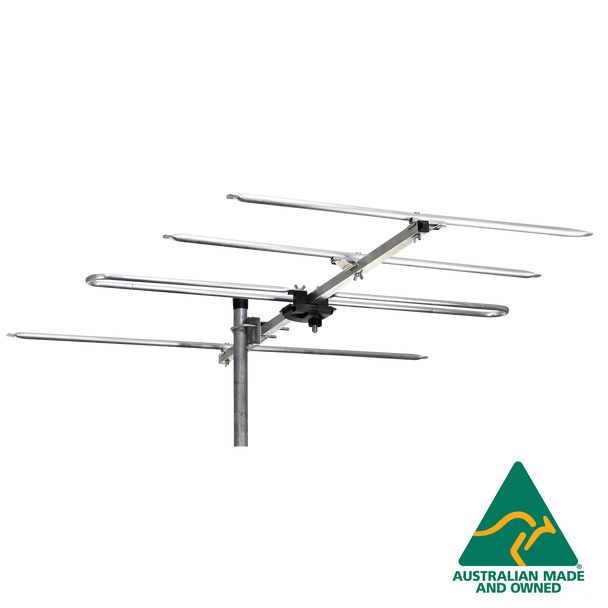

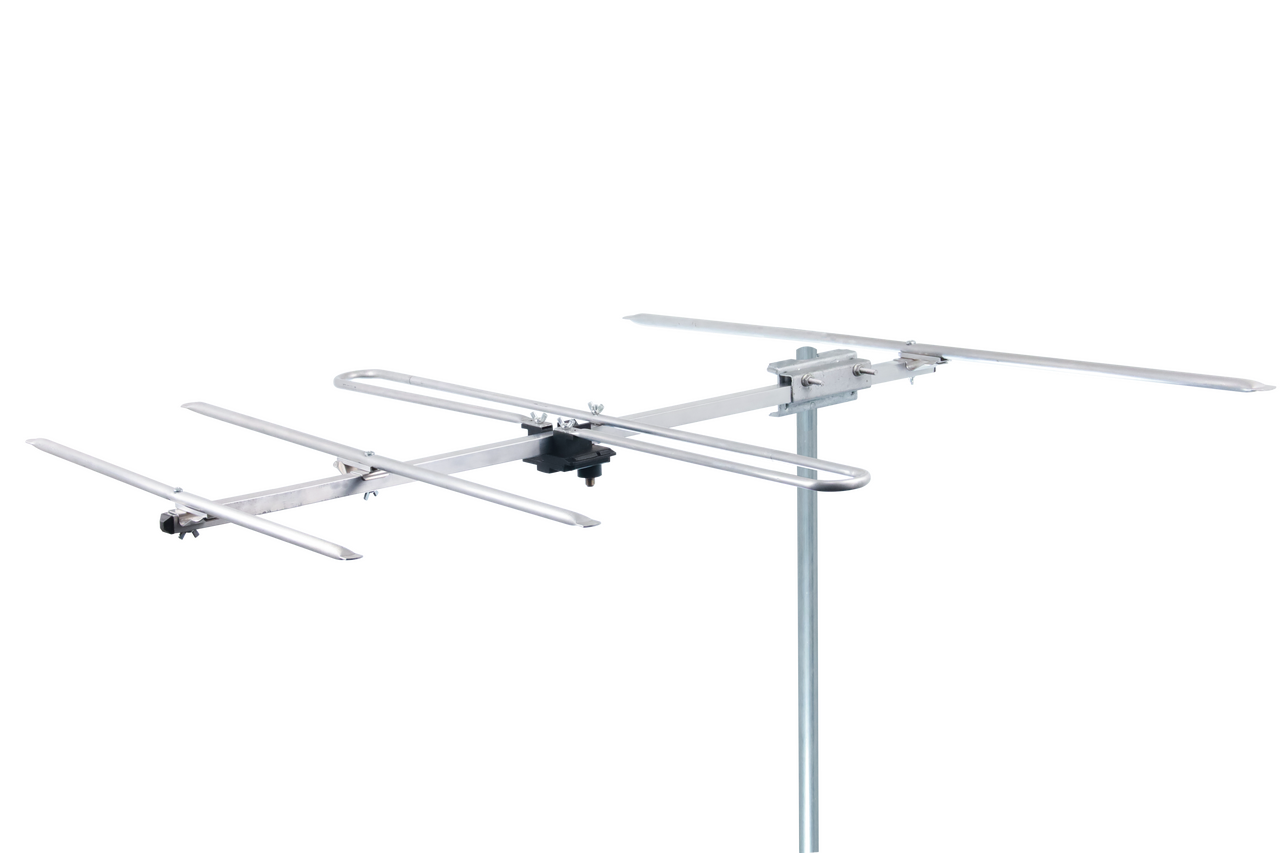

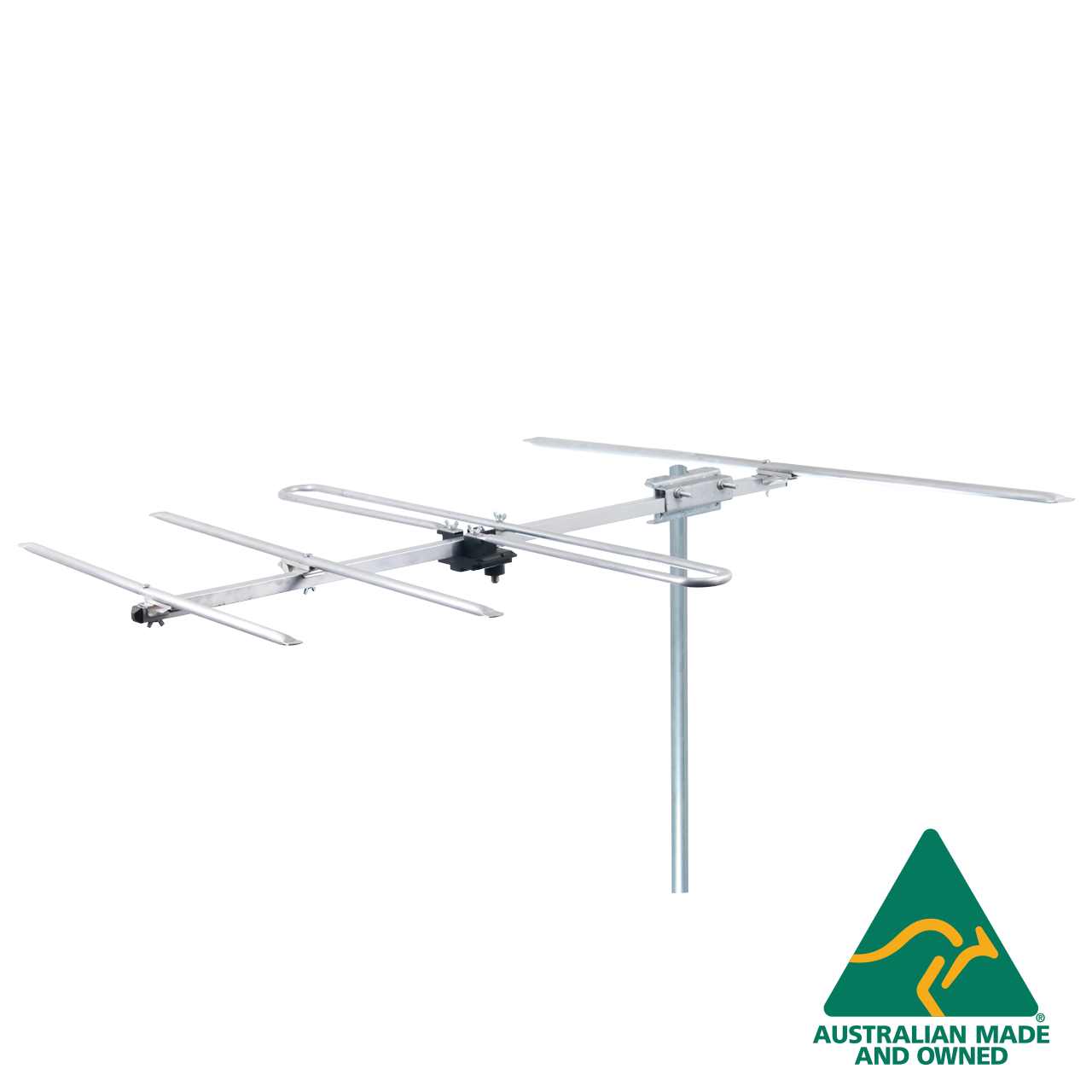

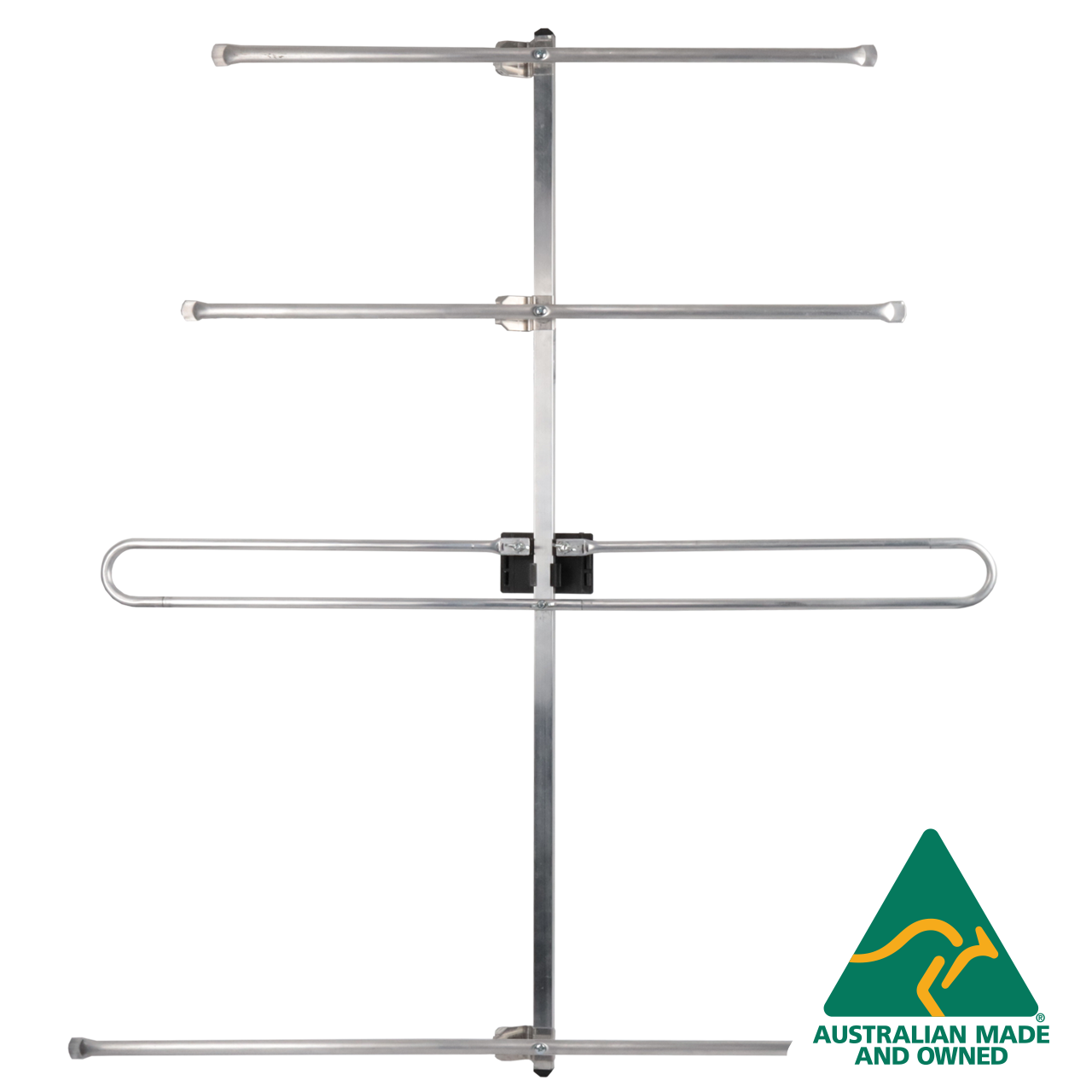

The Hills Antenna 01DY4A-4G is a 4-element VHF Yagi antenna designed to provide dependable signal reception while helping minimise interference from nearby 4G/LTE transmissions. Covering VHF Channels 6–12, it combines a practical antenna design with an integrated low-pass filter above 694 MHz for installations where VHF and mobile signals coexist.
With an average forward gain of 6.5 dB, the antenna is suited to professional television and radio reception applications where consistent signal performance is important. The matched balun is designed to support good MER performance and low insertion loss, helping installers achieve a reliable connection.
Durable Construction for Professional Installation
The 01DY4A-4G uses a square aluminium boom that provides a balance of strength and weight, while its extruded elements offer additional durability. UV-stabilised plastics help the antenna withstand outdoor installation conditions.

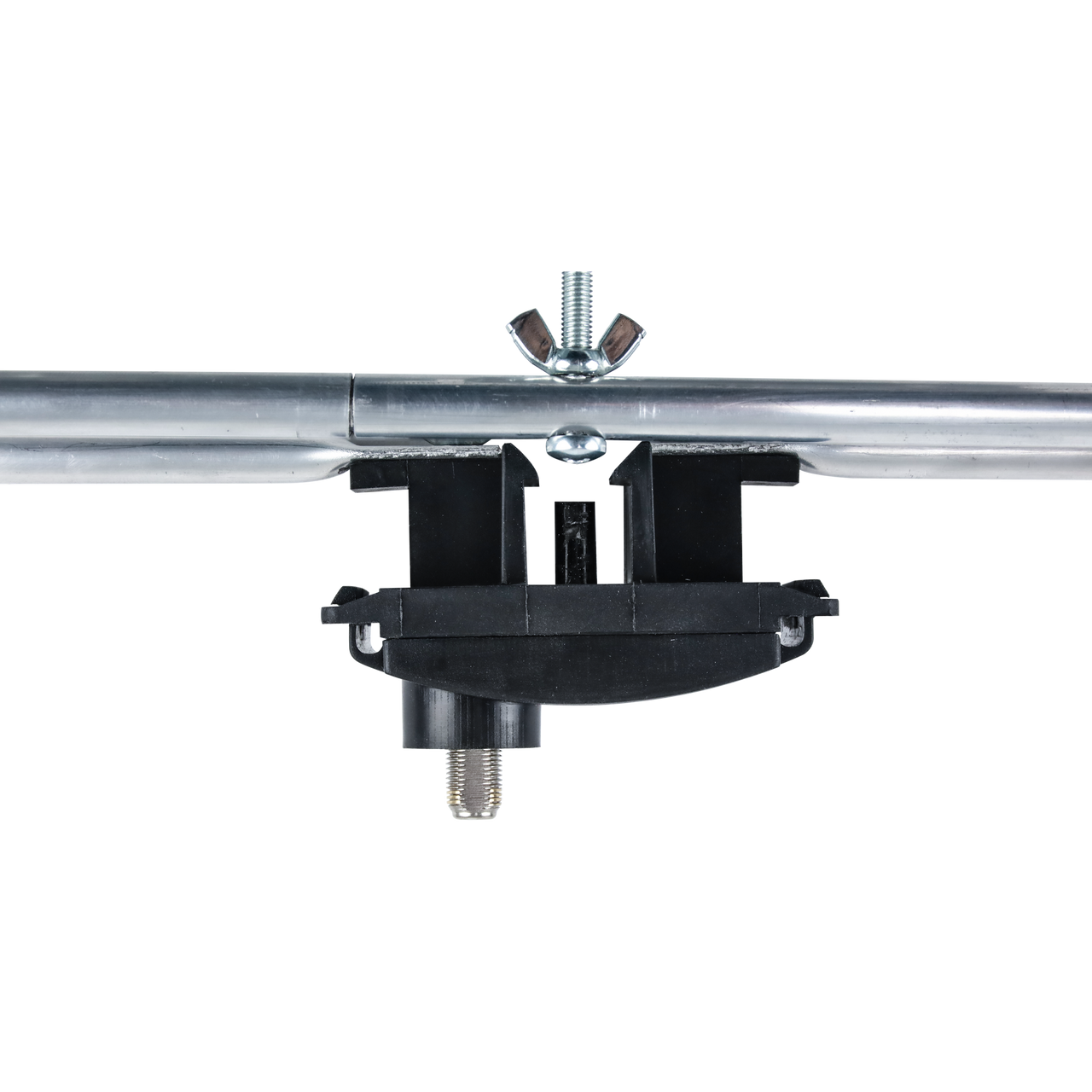

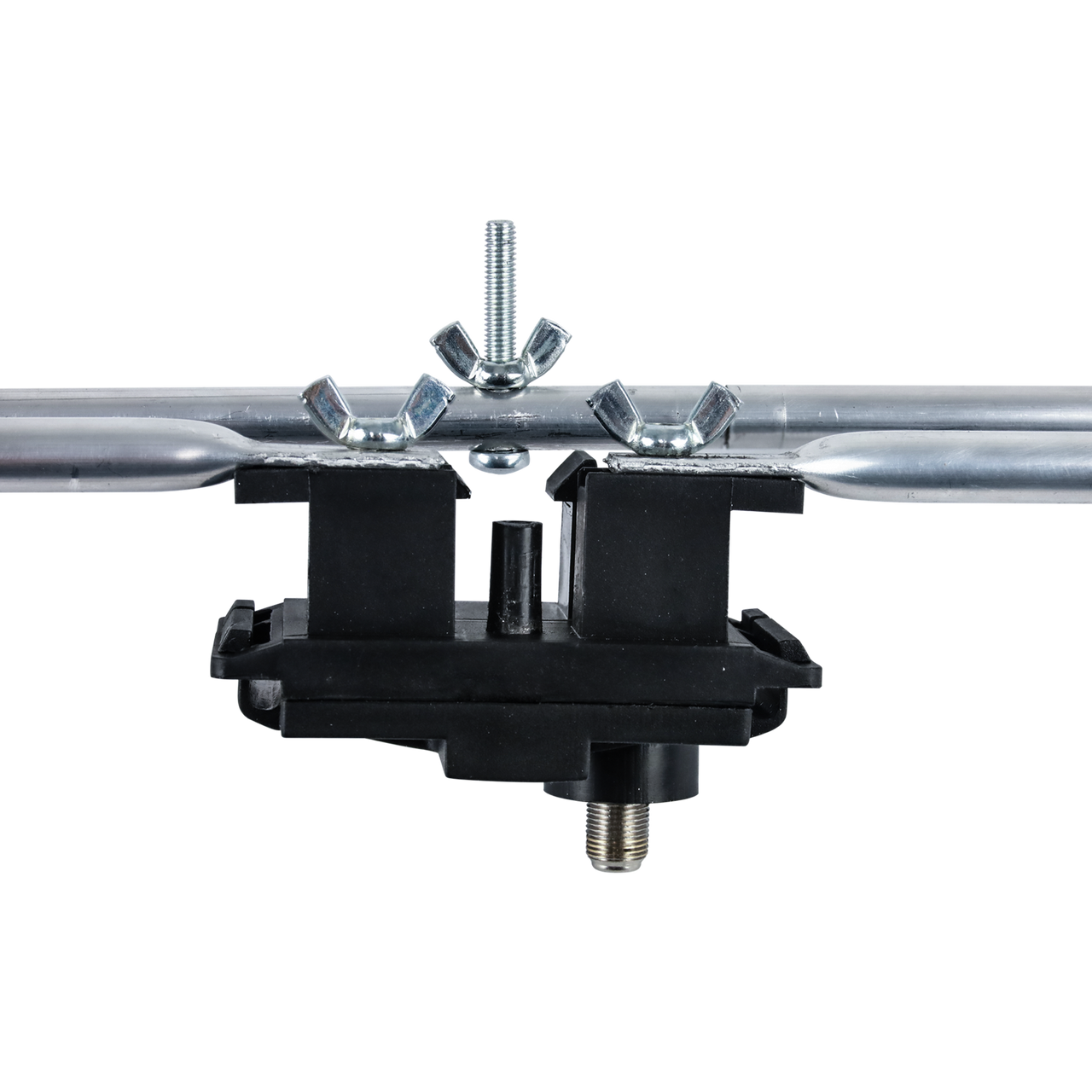

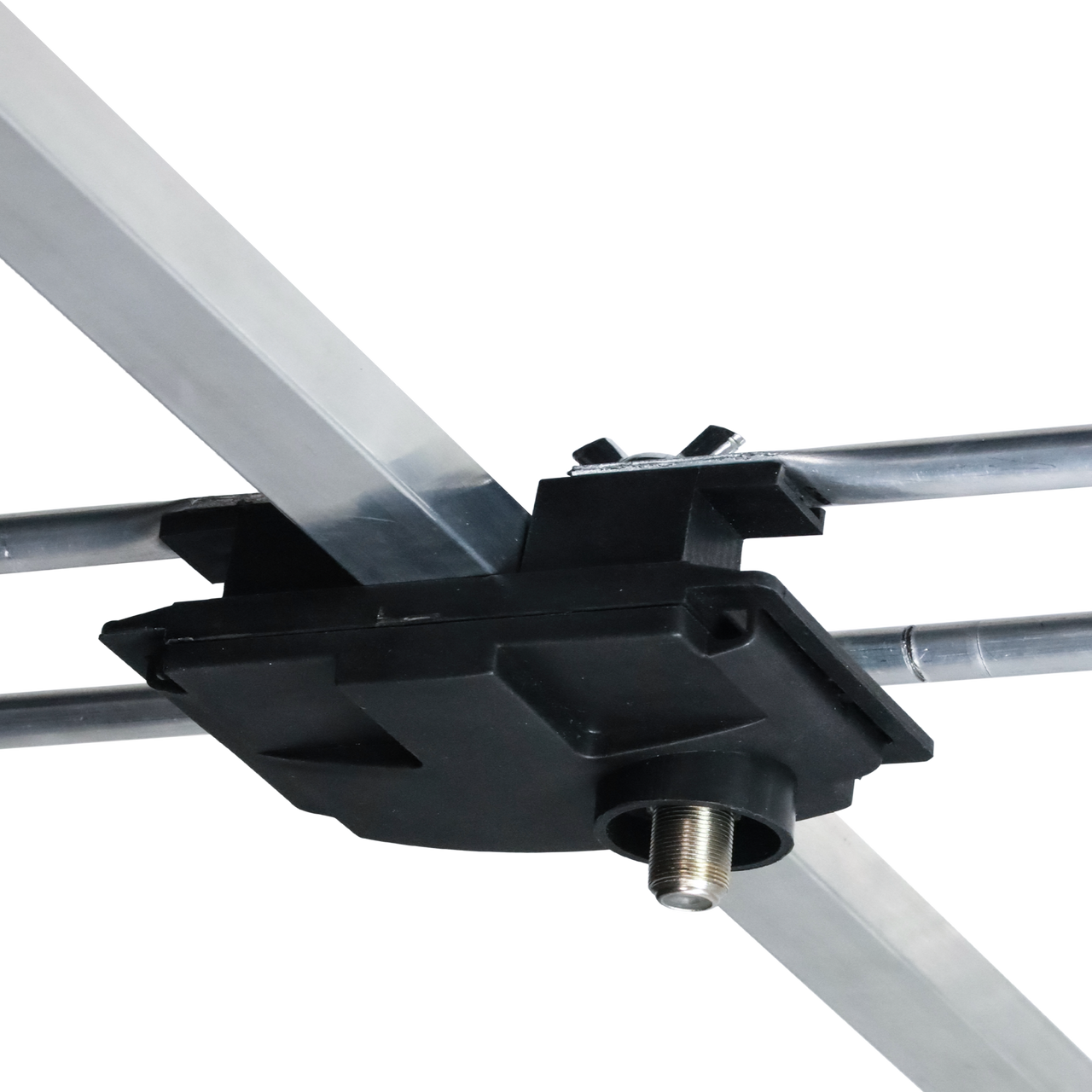

An integral balun housing incorporates a sealing rubber cable boot to provide a practical connection arrangement. The F-Type connector provides improved screening and consistent connection performance, supporting dependable installation results.
Installer-Friendly Antenna Design

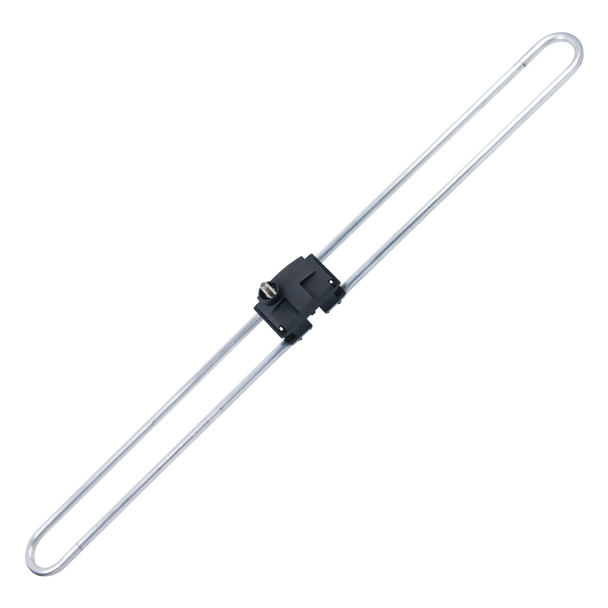

The antenna features a unique interlocking clip system that helps secure the elements positively to the boom. Its fold-out element design also simplifies assembly, making it convenient for electricians and antenna installers working on residential, commercial or maintenance projects.
Key Specs
- Model: 01DY4A-4G
- Antenna type: 4-element VHF Yagi
- Frequency response: VHF Channels 6–12
- Integrated filter: 4G/LTE above 694 MHz
- Average forward gain: 6.5 dB
- Maximum 4G rejection at 730 MHz: -47.3 dB
- Matched balun
- Square aluminium boom
- Extruded aluminium elements
- F-Type connector
- UV-stabilised plastics
- Fold-out element design
- Sealing rubber cable boot
Ideal For
- Professional VHF antenna installations
- Digital television reception applications
- Residential antenna installations
- Commercial and maintenance projects
- Areas affected by 4G/LTE signal interference
- Electricians and antenna installers requiring a durable, easy-to-assemble antenna
