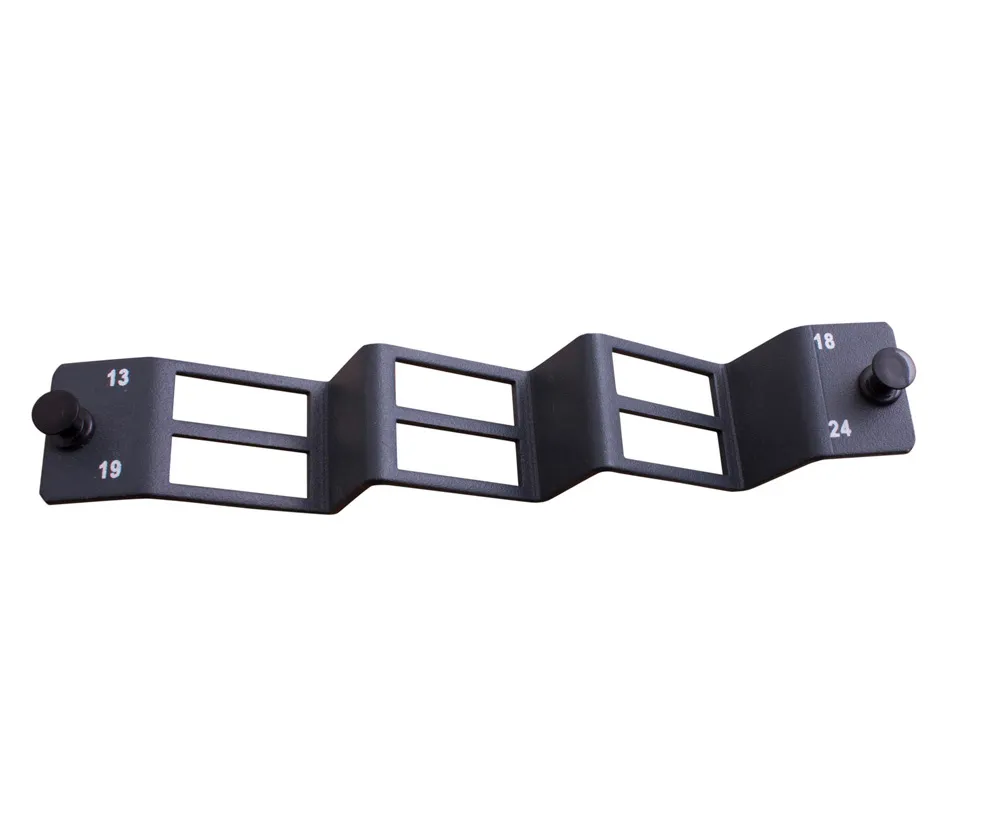

PANEL ANGLED SC DPX 6 PORT 13-24 L/H

Description

Efficient Fibre Connectivity for Network Installations

The Angled SC Duplex Panel DPX 6 Port 13–24 L/H is designed for fibre optic installations requiring organised connectivity within compatible MSS fibre enclosures and wall boxes. Its angled construction helps manage fibre patch lead routing, making it a practical option for telecommunications, data cabling and network infrastructure applications where cable arrangement and bend radius are important considerations.

Designed to accommodate compatible SC duplex and LC quad through adaptors, this panel supports flexible fibre connectivity configurations. It allows installers to select suitable adaptors for their specific application while maintaining an organised connection point within the enclosure.

Modular Integration with MSS Fibre Enclosures

This six-port panel clips into compatible MSS fibre enclosures and wall boxes, supporting a modular approach to fibre distribution and termination. Its clip-in design helps simplify panel integration during installation and allows the panel to form part of a configurable fibre management arrangement.

The modular construction is useful for projects requiring adaptable connectivity layouts across telecommunications rooms, commercial buildings and structured cabling installations. By using compatible enclosure components, installers can configure fibre connections to suit their project requirements without relying on a fixed, non-modular panel arrangement.

Angled Design for Improved Patch Lead Management

The angled panel construction helps reduce the bend radius required by fibre patch leads as they exit the connection area. Appropriate bend-radius management is important for protecting fibre cables against excessive bending that could affect optical performance or compromise cable integrity.

For installers working with confined enclosure spaces, the angled design can assist with practical patch lead routing and connection management. Compatibility with the specified adaptors and enclosure system should be confirmed before installation to ensure the panel suits the intended configuration.

Key Specs

• Product type: Fibre optic adaptor panel

• Configuration: 6-port panel

• Panel designation: DPX positions 13–24, L/H

• Adaptor compatibility: SC duplex and LC quad through adaptors

• Mounting: Clip-in modular design

• Compatible systems: MSS fibre enclosures and wall boxes

• Construction: Angled design for patch lead routing

• Application: Fibre optic connectivity and cable management

Ideal For

• Telecommunications and fibre optic installations

• Structured data cabling projects

• Commercial network infrastructure

• Fibre distribution and termination enclosures

• Installations requiring compatible SC duplex or LC quad adaptors

• Projects needing modular fibre panels for MSS enclosures and wall boxes

• Applications where patch lead bend-radius management is important
