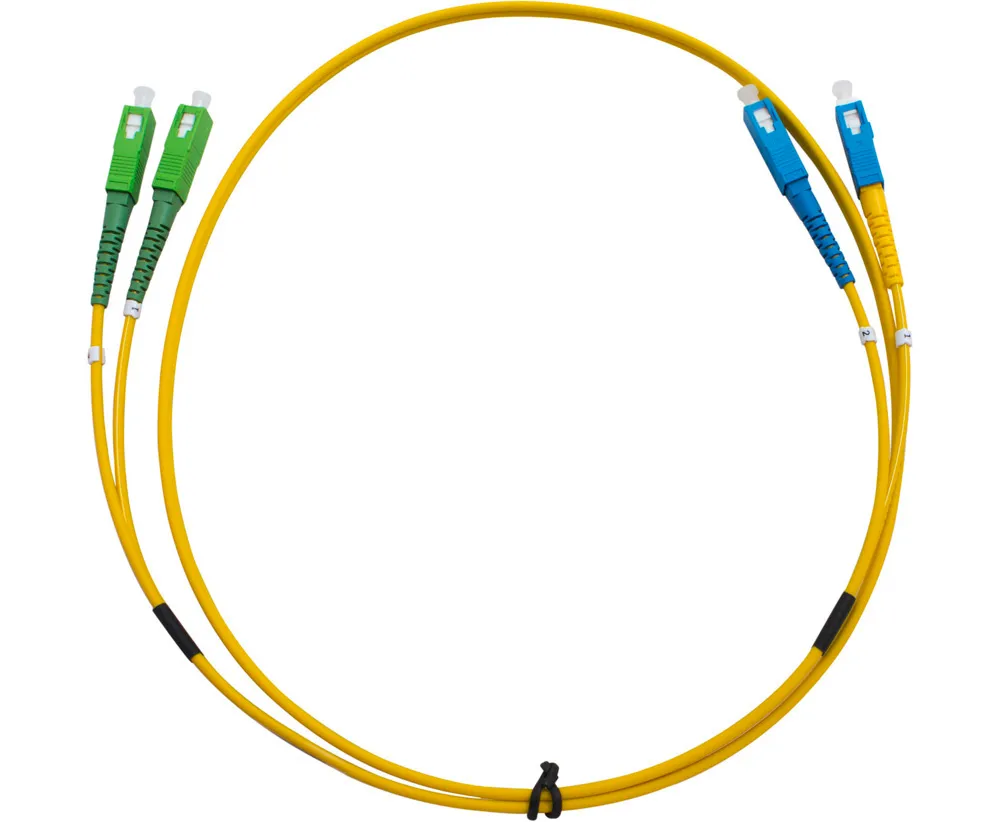

SC-SCA Duplex SM Patchlead 1 mtr

Description

Reliable Fibre Optic Connectivity

The SC-SCA Duplex Singlemode Patchlead 1 m is designed for fibre optic connections between active equipment and panels in telecommunications and data networking installations. Featuring factory-terminated connectors, this patchlead offers a convenient solution for technicians who require ready-to-install fibre connections without the need for on-site connector termination.

Its duplex configuration supports two fibre connections within a single patchlead assembly, making it suitable for compatible optical equipment and network infrastructure. The 1 m length provides a practical option for short-distance patching where equipment and panels are positioned close together, helping maintain an organised installation.

Designed for Installation Convenience

With a 3 mm low smoke zero halogen (LSZH) sheath, this patchlead is suited to installations where cable sheath material is an important consideration. The LSZH construction is designed to reduce smoke and halogen emissions compared with conventional halogen-containing cable materials when exposed to fire.

The yellow jacket provides easy visual identification among other cables in network cabinets, communications racks and patching environments. Its factory-terminated construction also simplifies installation by eliminating the need to prepare and terminate the cable ends on site, helping technicians complete fibre connections efficiently.

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, the patchlead is specified for repeated connector mating and unmating. This makes it a practical option for compatible installations where connections may need to be accessed for maintenance, testing or equipment changes.

Suitable for Fibre Optic Applications

The SC-SCA Duplex Singlemode Patchlead is suitable for a range of fibre optic applications, including CATV and video distribution, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM), Dense Wavelength Division Multiplexing (DWDM) and Fibre to the Home (FTTH).

Its compact 1 m length makes it particularly useful for local patching between compatible optical devices and panels. Before ordering, confirm connector compatibility and singlemode requirements against the intended equipment and installation.

Key Specs

• Product type: Duplex fibre optic patchlead

• Connector designation: SC-SCA

• Fibre type: Singlemode (SM)

• Cable length: 1 m

• Sheath diameter: 3 mm

• Sheath material: Low Smoke Zero Halogen (LSZH)

• Cable colour: Yellow

• Termination: Factory terminated

• Mating cycle rating: Up to 500 cycles

• Standard reference: IEC 61300-2-2

Ideal For

• Fibre optic patching between active equipment and panels

• Telecommunications and data networking installations

• CATV and video distribution systems

• Passive Optical Network (PON) infrastructure

• WDM and DWDM optical networking applications

• Fibre to the Home (FTTH) installations

• Maintenance and replacement of compatible singlemode patchleads
