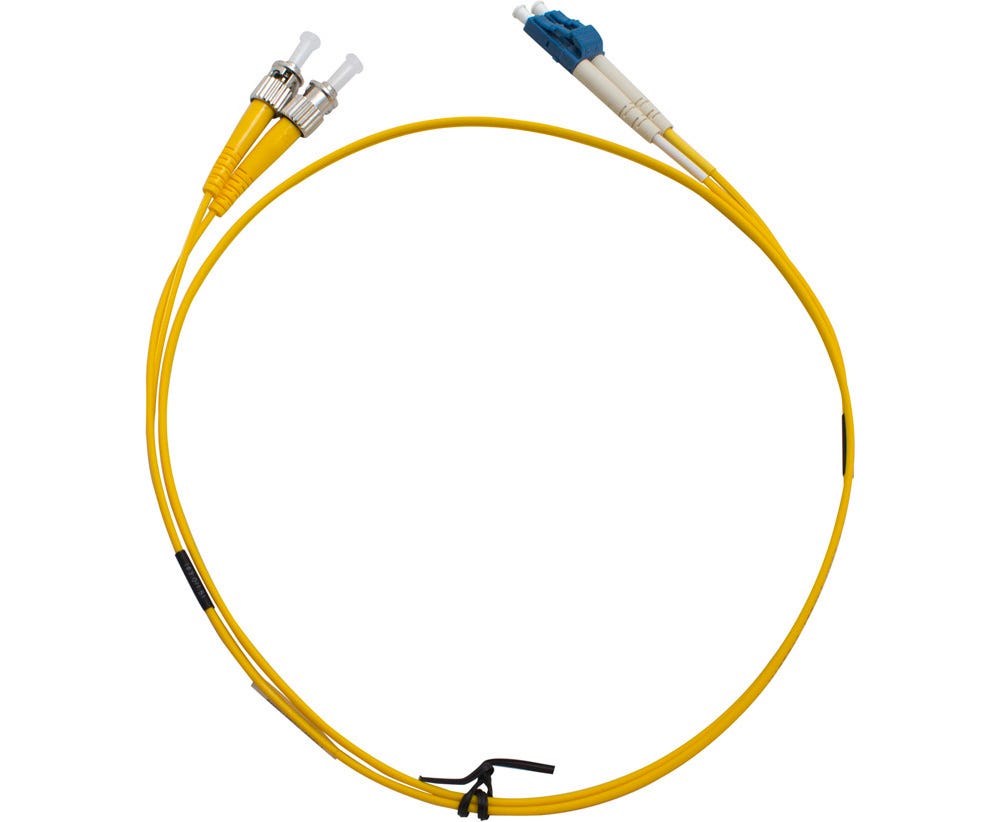

MSS Fibre ST-LC DUPLEX SM PATCHLEAD 3 MTR DSTLC3M-SM

Description

Reliable Fibre Connections for Network Installations

The MSS Fibre ST-LC Duplex Singlemode Fibre Optic Patch Lead is designed for connecting active network equipment to fibre optic panels and other compatible components. Featuring an ST connector at one end and an LC connector at the other, this patch lead supports installations requiring connections between equipment with different fibre connector interfaces.

Factory-terminated connectors provide a ready-to-install solution for fibre patching in telecommunications rooms, data centres and network infrastructure. Its singlemode fibre construction makes it suitable for applications involving telecommunications networks and high-speed metropolitan access networks, as well as CATV, video distribution, passive optical networks (PON), wavelength-division multiplexing (WDM/DWDM) and fibre-to-the-home (FTTH) systems.

Durable LSZH Sheath for Indoor Applications

The patch lead features a 2mm low-smoke, zero-halogen (LSZH) outer sheath in yellow. This sheath material is suitable for installations where reduced smoke and halogen emissions are important considerations in cable selection. The yellow jacket also makes the cable easier to identify and distinguish from other patch leads within organised fibre installations.

Designed for practical use in network environments, the cable combines a compact profile with factory-fitted connectors. Its duplex configuration accommodates two fibre paths within one patch lead, making it suitable for equipment and panel connections that require duplex fibre connectivity.

Suitable for Telecommunications and Data Networks

Built for regular fibre patching requirements, the MSS Fibre patch lead is specified for up to 500 mating cycles in accordance with IEC 61300-2-2. This provides a useful reference when selecting a patch lead for installations involving repeated connector mating and removal.

The product information identifies compliance with ITU-T G.652.D and TIA/EIA-492-CAAA specifications for the applicable singlemode fibre. Its ST-to-LC connector arrangement supports installations where compatible equipment and panels use different connector types. For Australian electrical contractors, communications installers and network maintenance teams, this patch lead offers a practical option for fibre infrastructure projects. Confirm connector compatibility, fibre requirements and the required cable length before ordering.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSTLC3M-SM

• Fibre Mode: Singlemode (SM)

• Fibre Type: OS1/OS2

• Connector End A: ST

• Connector End B: LC

• Configuration: Duplex

• Cable Length: 3 metres

• Sheath Material: Low Smoke Zero Halogen (LSZH)

• Sheath Diameter: 2mm

• Jacket Colour: Yellow

• Mating Cycles: Up to 500, per IEC 61300-2-2

• Specified Standards: ITU-T G.652.D, TIA/EIA-492-CAAA

Ideal For

• Fibre optic patching between active equipment and panels.

• Data centre and telecommunications room installations.

• Singlemode fibre network connections.

• CATV and video distribution systems.

• Passive optical network (PON) installations.

• WDM and DWDM network applications.

• Fibre-to-the-home (FTTH) infrastructure.

• Network maintenance and fibre connection upgrades.
