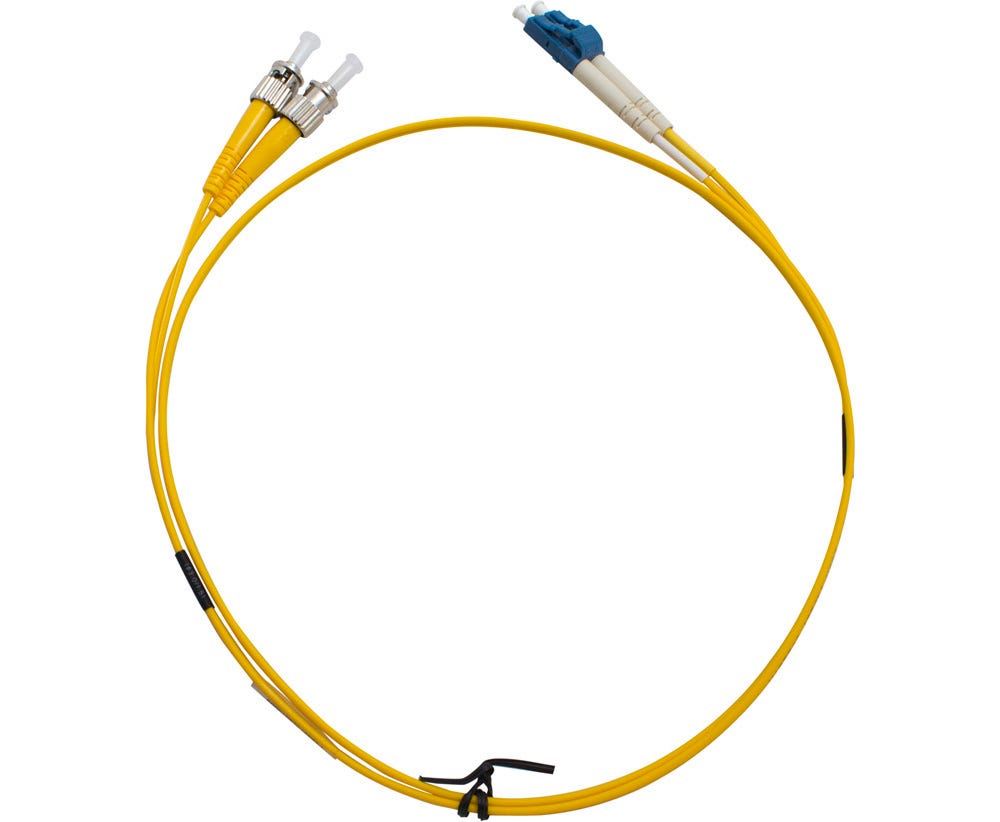

MSS Fibre ST-LC DUPLEX SM PATCHLEAD 1 MTR DSTLC1M-SM

Description

Factory-Terminated ST and LC Connectors

This MSS Fibre Systems patch lead features an ST connector at one end and an LC connector at the other, allowing connections between compatible equipment and fibre patch panels with different connector interfaces. Factory termination provides a ready-to-use cable assembly, helping simplify installation and reduce the need for on-site connector termination. Confirm connector compatibility and the required singlemode fibre type before installation.

Singlemode Fibre for Network Connectivity

Designed for singlemode fibre applications, this patch lead is suited to telecommunications networks and high-speed metropolitan access networks. Its stated applications include CATV and video systems, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH). The compact 1-metre length is practical for short connections within equipment racks, telecommunications cabinets and data centre patching environments.

LSZH Jacket for Indoor Installations

The cable features a 2mm yellow Low Smoke Zero Halogen (LSZH) sheath. This jacket material is intended to reduce smoke and halogen emissions compared with conventional halogen-containing cable materials when exposed to fire. Its yellow colour also helps identify the singlemode fibre connection during installation and maintenance. With a stated durability of up to 500 mating cycles in accordance with IEC 61300-2-2, this patch lead is suitable for applications where connections may need to be disconnected and reconnected during servicing.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSTLC1M-SM

• Fibre mode: Singlemode (SM)

• Connector end A: ST

• Connector end B: LC

• Configuration: Duplex

• Cable length: 1 metre

• Cable diameter: 2mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycles: Up to 500, according to IEC 61300-2-2

• Fibre standards stated: ITU-T G.652.D and TIA/EIA-492-CAAA

Ideal For

• Telecommunications network installations and maintenance

• Data centre and communications cabinet patching

• Connecting compatible ST and LC fibre interfaces

• CATV and video distribution systems

• Passive Optical Network (PON) applications

• WDM and DWDM fibre network connections

• Fibre to the Home (FTTH) installations

• Short-distance equipment-to-panel connections
