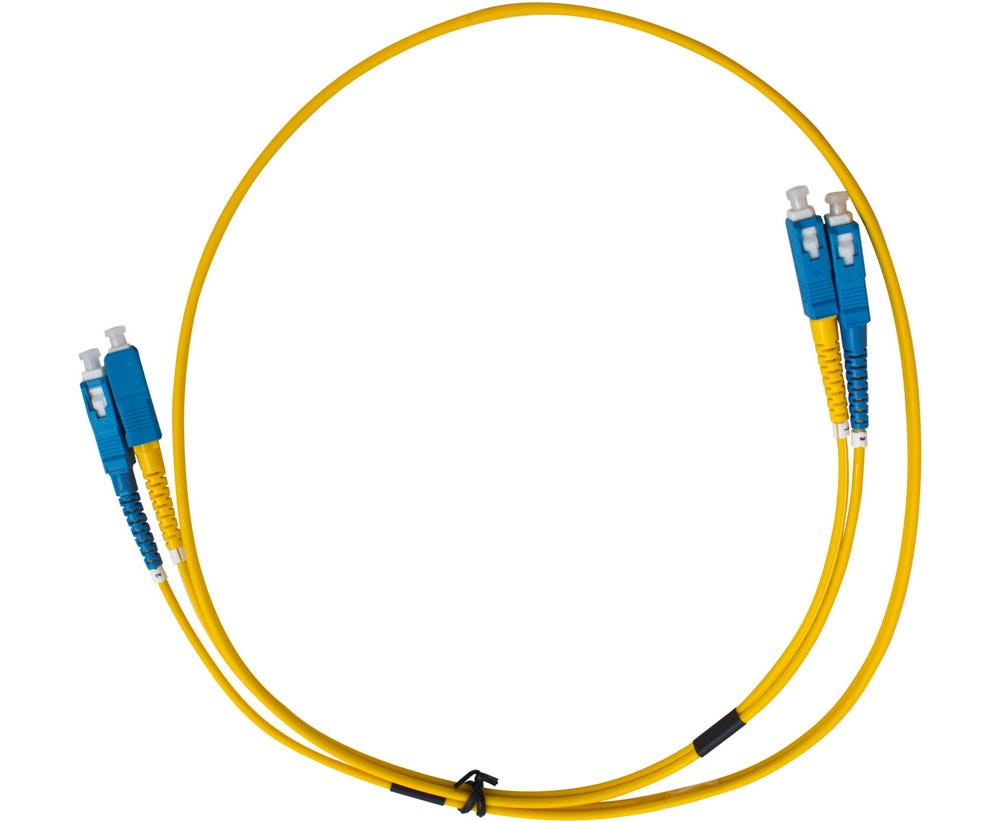

MSS Fibre SC-SC DUPLEX SM PATCHLEAD 5 MTR DSCSC5M-SM

Description

Factory-Terminated SC Connectors for Fibre Patching

The MSS Fibre patch lead features SC connectors at both ends, providing a consistent connection format for compatible fibre optic equipment and patch panels. Its factory-terminated construction supports convenient installation without requiring on-site connector termination, helping streamline patching work in data centres, telecommunications rooms and network equipment installations.

The duplex configuration accommodates two optical fibre paths within one patch lead, making it suitable for compatible fibre links that require separate transmit and receive paths. Always verify connector compatibility and the required fibre specification before installation.

Singlemode Fibre for Telecommunications Networks

Designed for singlemode applications, this patch lead is suitable for compatible OS1/OS2 fibre optic infrastructure. Singlemode fibre is widely used in telecommunications networks and high-speed metropolitan access networks, supporting a range of data transmission and connectivity requirements.

Its listed applications include CATV/video, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM), Dense Wavelength Division Multiplexing (DWDM) and Fibre to the Home (FTTH). The yellow cable jacket provides a readily identifiable appearance for fibre cable management and installation work.

LSZH Sheath for Installation Environments

The cable features a 3 mm Low Smoke Zero Halogen (LSZH) sheath. This sheath material is intended to reduce smoke and halogen-containing gas emissions compared with conventional halogenated cable materials when exposed to fire. Suitability for a particular installation should still be confirmed against the project’s fire safety and cabling requirements.

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, the patch lead is designed for repeated connector mating within its specified limits. Its 5-metre length offers flexibility when connecting compatible equipment and patch panels positioned apart within a telecommunications or data networking setup.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCSC5M-SM

• Cable type: Singlemode fibre optic patch lead

• Fibre specification: OS1/OS2

• Connector end A: SC

• Connector end B: SC

• Configuration: Duplex

• Cable length: 5 metres

• Sheath diameter: 3 mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycles: Up to 500

• Referenced standard: IEC 61300-2-2

• Applications: CATV/video, PON, WDM/DWDM and FTTH

Ideal For

• Data centre fibre optic connections and patching.

• Telecommunications rooms and network equipment installations.

• Connecting compatible fibre optic equipment to patch panels.

• Singlemode fibre links in metropolitan access networks.

• CATV/video and compatible PON infrastructure.

• WDM/DWDM network installations.

• FTTH fibre connectivity projects.

• Electrical contractors and network technicians requiring a factory-terminated duplex patch lead.
