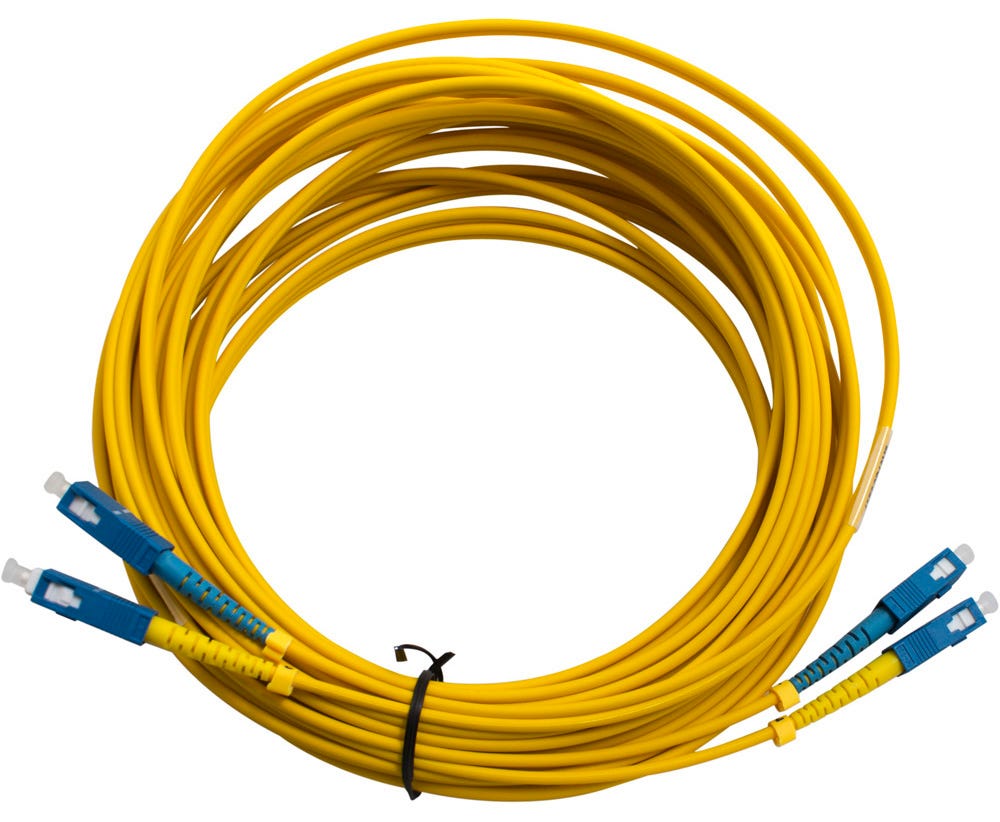

MSS Fibre SC-SC DUPLEX SM PATCHLEAD 20 MTR DSCSC20M-SM

Description

Reliable Singlemode Fibre Connectivity

Designed for singlemode fibre applications, this patch lead is suitable for telecommunications networks and high-speed metropolitan access networks. Its SC-to-SC connector configuration supports connections between compatible fibre optic equipment, network devices and patch panels. The duplex design accommodates two fibre paths within one cable assembly, making it suitable for installations requiring paired optical connections.

Durable LSZH Cable Construction

The patch lead features a 3 mm Low Smoke Zero Halogen (LSZH) sheath and a yellow cable jacket for straightforward identification during installation and maintenance. The LSZH sheath is designed to produce reduced smoke and no halogen acid gases compared with conventional halogenated cable materials when exposed to fire. This construction makes it a practical option for indoor network environments where cable material selection is an important consideration.

Factory termination helps streamline installation by providing pre-assembled connector ends, reducing the work required during setup. The connectors are rated for up to 500 mating cycles in accordance with IEC 61300-2-2, supporting repeated connection and disconnection during routine network changes and servicing.

Applications Across Network Infrastructure

The MSS Fibre SC-SC Duplex Singlemode Patch Lead is suitable for a range of fibre optic applications, including Cable Television (CATV), video transmission, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH) installations. Its 20-metre length provides flexibility when connecting equipment positioned farther apart within a facility.

For electrical contractors, telecommunications installers and network maintenance teams, this patch lead offers a convenient component for fibre optic installations, upgrades and ongoing servicing. Selecting compatible singlemode equipment and SC interfaces helps ensure the patch lead meets the requirements of the intended connection.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCSC20M-SM

• Fibre mode: Singlemode (SM)

• Fibre type: OS1/OS2

• Connector end A: SC

• Connector end B: SC

• Configuration: Duplex

• Cable length: 20 metres

• Cable diameter: 3 mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Connector durability: Up to 500 mating cycles

• Connector cycle standard: IEC 61300-2-2

• Referenced fibre standard: ITU-T G.652.D

• Referenced compliance specification: TIA/EIA 492 CAAA

Ideal For

• Telecommunications network installations and maintenance

• Data centres and telecommunications rooms

• Fibre optic equipment-to-panel connections

• High-speed metropolitan access networks

• CATV and video transmission systems

• Passive Optical Network (PON) installations

• WDM/DWDM fibre optic systems

• Fibre to the Home (FTTH) connections

• Network upgrades and fibre patching requirements
