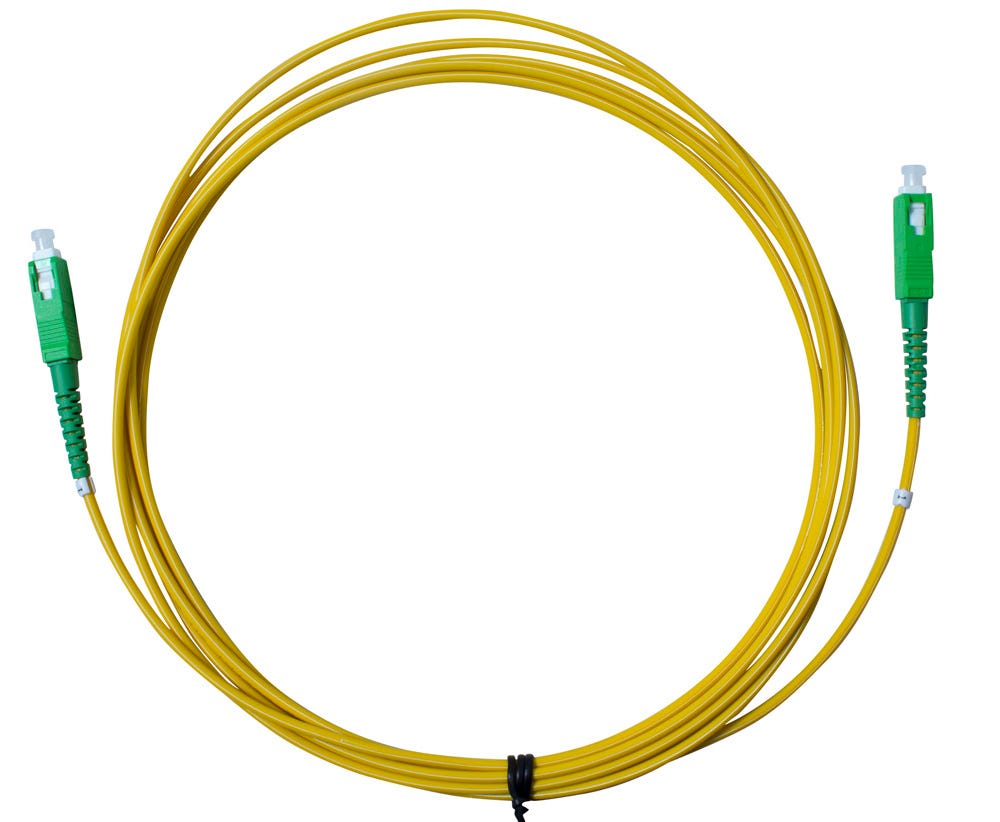

MSS Fibre SCA-SCA SIMPLEX SM PATCHLEAD 3 MTR 2MM SSCASCA3M-SM-2MM

Description

Reliable Fibre Connections for Network Equipment

Featuring SCA connectors at both ends, this simplex patch lead is designed for singlemode fibre connections between compatible active equipment and fibre optic panels. Its factory-terminated connectors simplify installation by providing ready-to-use connections without requiring on-site connector termination. This makes it a convenient option for network installations, equipment changes, maintenance work and fibre infrastructure upgrades where compatible singlemode connections are required.

The singlemode configuration is suited to telecommunications networks and high-speed metropolitan access networks. It also supports applications such as CATV/video, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM), Dense Wavelength Division Multiplexing (DWDM) and Fibre to the Home (FTTH).

LSZH Sheath for Practical Installation

The patch lead features a 2 mm Low Smoke Zero Halogen (LSZH) outer sheath and a yellow jacket. The LSZH material is a practical consideration for indoor installations where reduced smoke and halogen emissions from cable materials are important. The yellow jacket also helps distinguish the cable during installation, inspection and maintenance activities.

Its simplex construction provides a single fibre connection in a compact cable arrangement, making it suitable for patching applications where a single fibre path is required. Always confirm connector compatibility, fibre specifications and installation requirements before ordering.

Suitable for Telecommunications and Data Networks

Designed for repeated connection and disconnection, the patch lead supports up to 500 mating cycles in accordance with IEC 61300-2-2. This makes it suitable for applications involving equipment changes, routine servicing and network reconfiguration within its specified operating conditions.

For Australian electrical contractors, telecommunications installers and maintenance teams, the MSS Fibre patch lead offers a straightforward option for compatible fibre optic connections. Check the required cable length and connector type against your installation before purchase. Contact iSupply Electrical for further product enquiries or bulk-order requirements.

Key Specs

• Brand: MSS Fibre Systems

• Model: SSCASCA3M-SM-2MM

• Product type: Fibre optic patch lead

• Fibre mode: Singlemode (SM)

• Connector end A: SCA

• Connector end B: SCA

• Configuration: Simplex

• Cable sheath: 2 mm LSZH

• Jacket colour: Yellow

• Mating cycles: Up to 500

• Compliance reference: IEC 61300-2-2

• Fibre standards: ITU-T G.652.D, TIA/EIA 492 CAAA

Ideal For

• Telecommunications network installations and maintenance

• Data centres and telecommunications rooms

• Connecting compatible fibre optic equipment and panels

• CATV and video distribution systems

• Passive Optical Network (PON) installations

• WDM and DWDM fibre infrastructure

• Fibre to the Home (FTTH) networks

• Network upgrades, servicing and equipment changes
