MSS Fibre SCA-SCA DUPLEX SM PATCHLEAD 2 MTR DSCASCA2M-SM

Description

Reliable Fibre Optic Connectivity

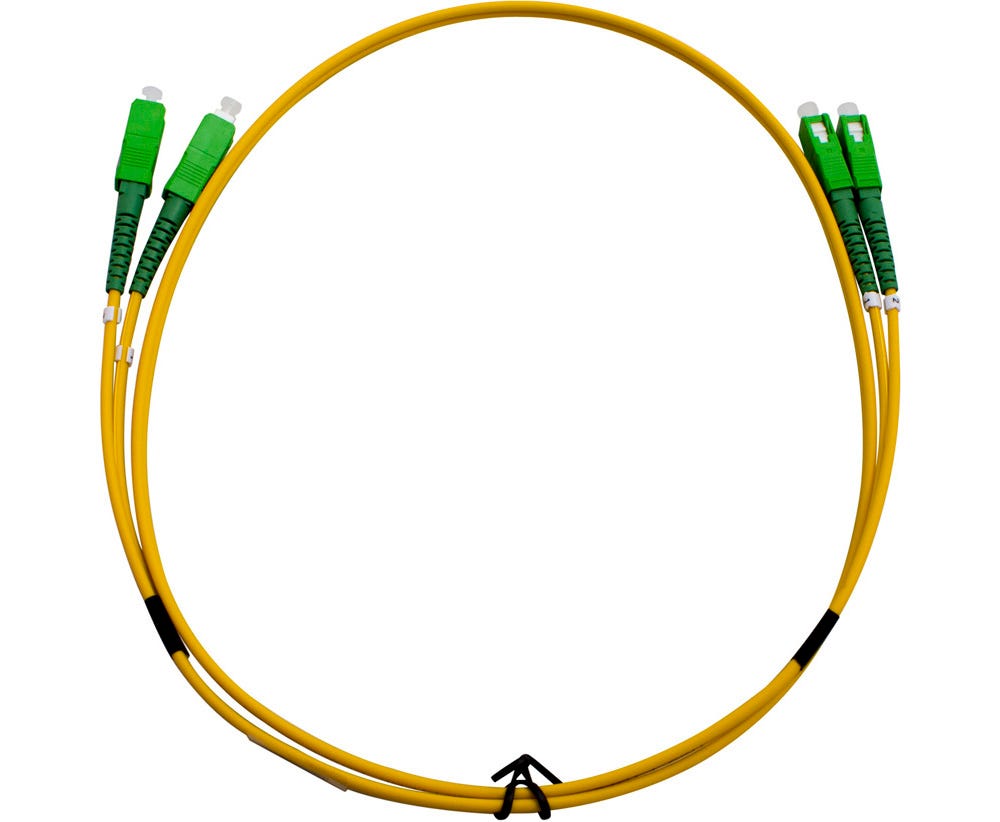

The MSS Fibre singlemode patch lead features SCA connectors at both ends in a duplex configuration. Its factory-terminated design simplifies patching between compatible fibre optic equipment and panels, helping installers complete connections without field termination.

With a 2-metre cable length, this patch lead suits installations where a short, ready-made connection is required. It is designed for singlemode fibre applications, including telecommunications networks and high-speed metropolitan access networks. The SCA-SCA connector arrangement makes it suitable for systems designed to accept the corresponding connector type.

Durable LSZH Cable Construction

This patch lead features a 3mm low-smoke, zero-halogen (LSZH) sheath in yellow. The LSZH jacket is designed to reduce smoke and avoid halogen-containing emissions associated with conventional halogenated cable materials during combustion. This construction can be an important consideration when selecting cabling for indoor installations where cable material requirements apply.

The yellow jacket also makes the cable easier to distinguish from other patch leads during installation, maintenance and troubleshooting. Its compact cable profile supports organised patching in equipment racks, telecommunications rooms and fibre distribution panels.

Suitable for Telecommunications and Data Networks

The MSS Fibre DSCASCA2M-SM is intended for a range of singlemode fibre optic applications, including CATV and video systems, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH).

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, this patch lead is designed for repeated connector mating within its specified rating. It provides a practical option for technicians maintaining fibre infrastructure or completing new network installations.

For electrical contractors, communications installers and maintenance teams, this factory-terminated duplex patch lead offers a straightforward way to connect compatible singlemode fibre equipment. Confirm connector compatibility and the required fibre specification before ordering to ensure suitability for the intended installation.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCASCA2M-SM

• Product type: Fibre optic patch lead

• Fibre mode: Singlemode (SM)

• Fibre specification: OS1/OS2 as specified for the product

• Connector end A: SCA

• Connector end B: SCA

• Configuration: Duplex

• Cable length: 2 metres

• Cable diameter: 3mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycle rating: Up to 500 cycles (IEC 61300-2-2)

• Applications: CATV/Video, PON, WDM/DWDM and FTTH

Ideal For

• Telecommunications network installations and maintenance

• Data centre and telecommunications room patching

• Connecting compatible active fibre equipment to panels

• Fibre distribution panel and network equipment connections

• Passive Optical Network (PON) installations

• Fibre to the Home (FTTH) infrastructure

• CATV, video and WDM/DWDM applications

• Projects requiring factory-terminated duplex singlemode fibre leads
