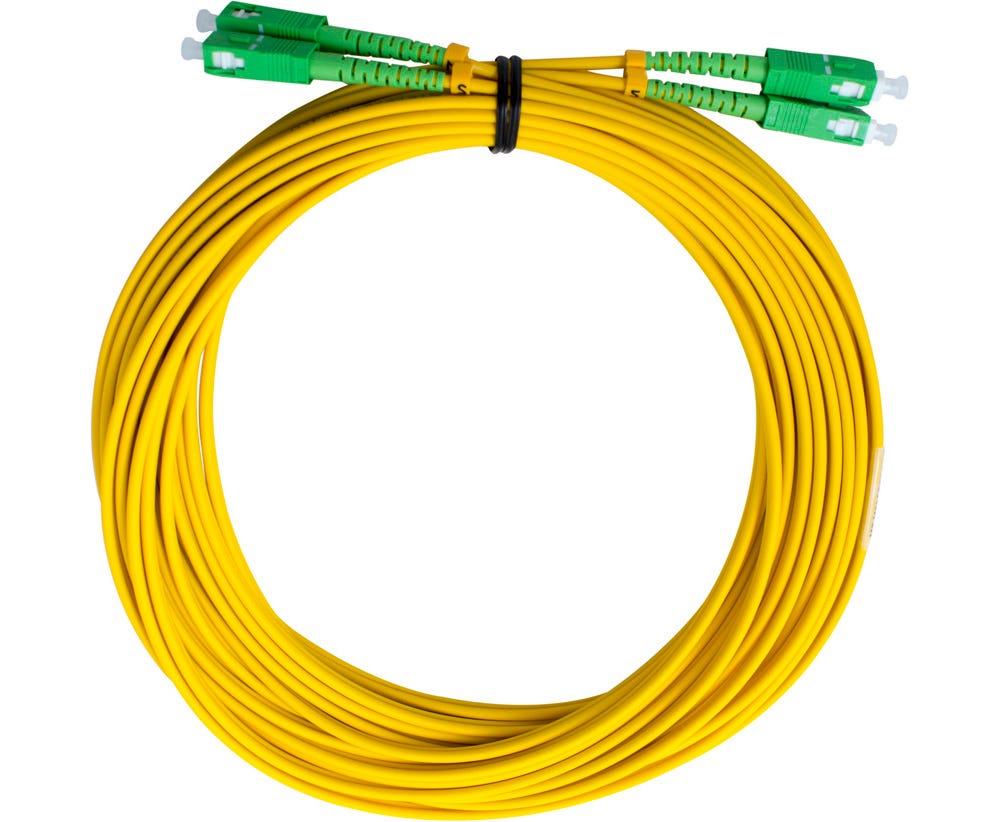

MSS Fibre SCA-SCA DUPLEX SM PATCHLEAD 10 MTR DSCASCA10M-SM

Description

Reliable Fibre Connectivity for Network Installations

This MSS Fibre Systems patch lead features SCA connectors at both ends and a duplex configuration for fibre optic patching applications. Its singlemode (SM) construction is suited to telecommunications networks and high-speed metropolitan access networks. The lead supports fibre connectivity requirements across a range of network environments where dependable equipment connections and organised cable management are essential.

LSZH Sheath for Indoor Infrastructure

The cable features a 3mm low-smoke, zero-halogen (LSZH) sheath and a yellow jacket for easy identification within fibre installations. LSZH cable construction is designed to limit smoke and avoid halogen acid gas emissions from the sheath when exposed to fire, making it a useful option for suitable indoor installations. Always verify the cable’s suitability against the requirements of the intended installation.

Versatile Applications Across Fibre Networks

The 10-metre length provides additional reach when connecting equipment and panels in telecommunications rooms, data centres, and other fibre network environments. Applications include CATV and video systems, passive optical networks (PON), wavelength-division multiplexing (WDM/DWDM), and fibre-to-the-home (FTTH) installations. With up to 500 mating cycles specified to IEC 61300-2-2, this patch lead is suitable for applications involving repeated connection and disconnection, subject to correct handling and installation practices.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCASCA10M-SM

• Fibre Mode: Singlemode (SM)

• Fibre Type: OS1/OS2, as specified for the product range

• Connector End A: SCA

• Connector End B: SCA

• Configuration: Duplex

• Cable Length: 10 metres

• Sheath Diameter: 3mm

• Jacket Material: LSZH (Low Smoke Zero Halogen)

• Jacket Colour: Yellow

• Mating Cycles: Up to 500

• Standard: IEC 61300-2-2 for mating-cycle performance

• Applications: CATV/video, PON, WDM/DWDM, FTTH

Ideal For

• Telecommunications network installations and maintenance

• Data centres and telecommunications rooms

• Fibre optic patching between active equipment and panels

• High-speed metropolitan access networks

• CATV and video distribution systems

• Passive optical network (PON) installations

• WDM/DWDM fibre network infrastructure

• Fibre-to-the-home (FTTH) applications
