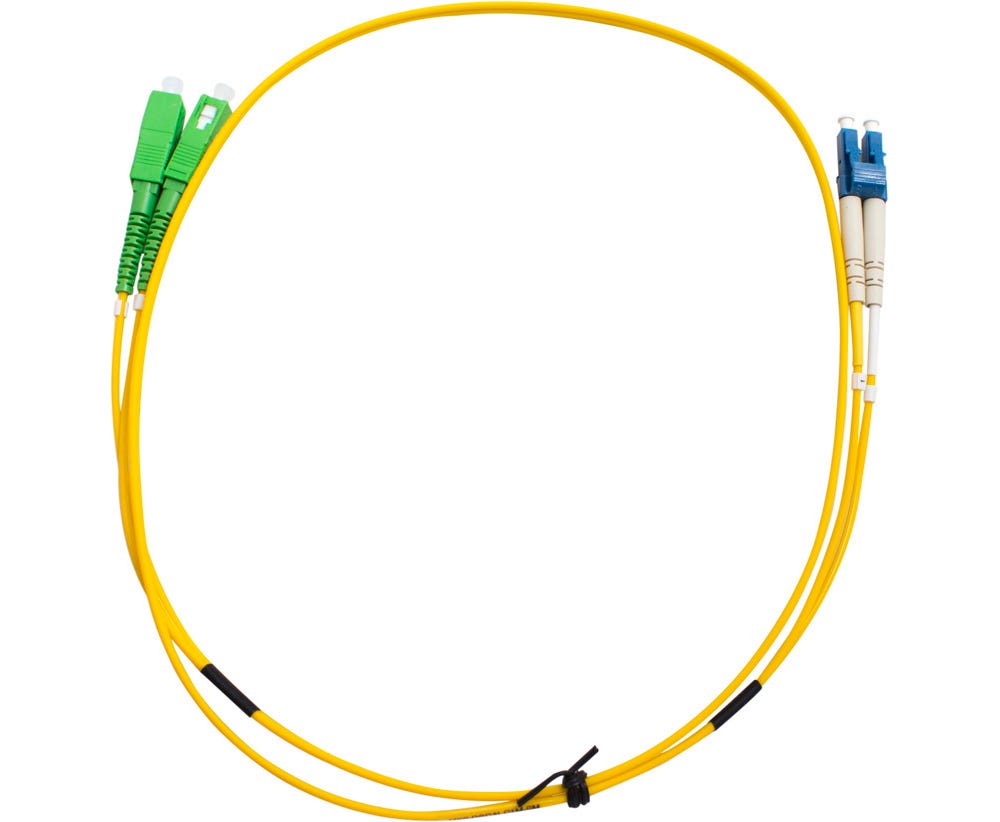

MSS Fibre SCA-LC DUPLEX SM PATCHLEAD 5 MTR DSCALC5M-SM

Description

Factory-Terminated Fibre Connections

The MSS Fibre patch lead features factory-terminated connectors for convenient installation between compatible fibre optic equipment and panels. Its SCA connector on one end and LC connector on the other provide a mixed-connector configuration for applications requiring these specific interfaces. The duplex design supports two optical fibre paths within a single cable assembly, making it suitable for fibre links that require separate transmit and receive paths.

Singlemode Performance for Network Infrastructure

Designed for singlemode fibre applications, this patch lead is suited to telecommunications networks and high-speed metropolitan access networks. Singlemode fibre is commonly used in infrastructure requiring signal transmission over longer distances, subject to the equipment and network design. Typical applications include cable television (CATV), video distribution, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH) installations.

LSZH Sheath for Indoor Installations

The yellow 2 mm Low Smoke Zero Halogen (LSZH) sheath provides a readily identifiable cable covering for fibre infrastructure. LSZH materials are designed to emit limited smoke and no halogens under specified fire conditions, making them a consideration for indoor cabling environments where smoke and corrosive gas emissions matter. With a stated durability of up to 500 mating cycles in accordance with IEC 61300-2-2, this patch lead is suitable for applications involving repeated connector mating and disconnection within its rated limits.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCALC5M-SM

• Fibre mode: Singlemode (SM)

• Fibre type: OS1/OS2, as identified in the supplied product information

• Connector end A: SCA

• Connector end B: LC

• Configuration: Duplex

• Cable length: 5 metres, as indicated in the product title

• Sheath material: Low Smoke Zero Halogen (LSZH)

• Cable diameter: 2 mm

• Jacket colour: Yellow

• Mating durability: Up to 500 cycles

• Referenced standard: IEC 61300-2-2

Ideal For

• Data centre fibre optic connections and equipment patching

• Telecommunications rooms and network infrastructure

• Premise cabling installations

• Fibre links requiring SCA-to-LC connector compatibility

• Singlemode network deployments using duplex connections

• CATV, video, PON, WDM/DWDM and FTTH applications where the connector and fibre specifications are compatible

• Electrical and telecommunications contractors maintaining or expanding fibre networks
