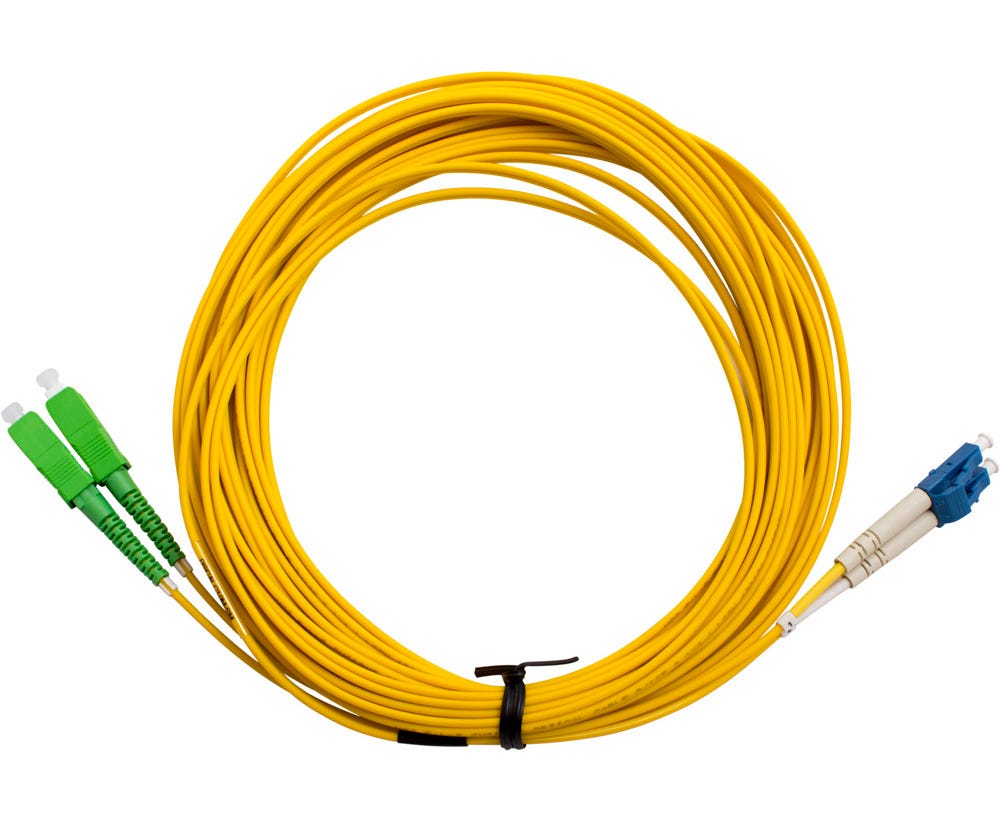

MSS Fibre SCA-LC DUPLEX SM PATCHLEAD 10 MTR DSCALC10M-SM

Description

Reliable Fibre Connectivity for Network Infrastructure

The MSS Fibre Systems DSCALC10M-SM patch lead is designed for singlemode fibre connections in telecommunications networks and high-speed metropolitan access networks. Its duplex configuration supports fibre connections requiring two optical pathways, making it suitable for a range of network equipment and patching arrangements.

With an SCA connector at one end and an LC connector at the other, this lead provides a specified connector combination for compatible fibre interfaces. The 10-metre length offers flexibility when connecting equipment and panels located further apart within a telecommunications room or data centre.

LSZH Sheath for Professional Installations

Featuring a 2mm low-smoke, zero-halogen (LSZH) sheath, this patch lead is designed for installations where cable material selection is an important consideration. The yellow jacket provides clear visual identification within fibre infrastructure, helping technicians distinguish the lead during installation, maintenance and troubleshooting.

Factory-terminated connectors help simplify deployment by providing a ready-made connection for compatible equipment. This reduces the need for on-site connector termination when installing or replacing patch leads, supporting efficient work in busy commercial and telecommunications environments.

Suitable for Telecommunications and Data Applications

The MSS Fibre SCA-LC Duplex Singlemode Patch Lead is suitable for fibre optic patching in data centres, telecommunications rooms and premise cabling systems. Singlemode fibre is commonly used in telecommunications networks and applications such as cable television, passive optical networks (PON), wavelength-division multiplexing (WDM/DWDM) and fibre-to-the-home (FTTH).

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, this lead is designed for repeated connection and disconnection within its specified rating. Select this 10-metre patch lead when its connector configuration, singlemode format and cable specifications match your network requirements.

Key Specs

• Brand: MSS Fibre Systems

• Product code: DSCALC10M-SM

• Fibre mode: Singlemode (SM)

• Connector end A: SCA

• Connector end B: LC

• Configuration: Duplex

• Cable length: 10 metres

• Sheath diameter: 2mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycles: Up to 500 (IEC 61300-2-2)

Ideal For

• Data centre fibre optic patching

• Telecommunications room connections

• Connecting compatible active equipment and fibre panels

• Premise cabling installations

• Singlemode telecommunications networks

• High-speed metropolitan access networks

• Compatible CATV, PON, WDM/DWDM and FTTH applications

• Network maintenance and replacement of existing patch leads
