MSS Fibre SC OS1/OS2 SM PIGTAILS – 900UM 2M C6PK PSC2M/900-SMC6

Description

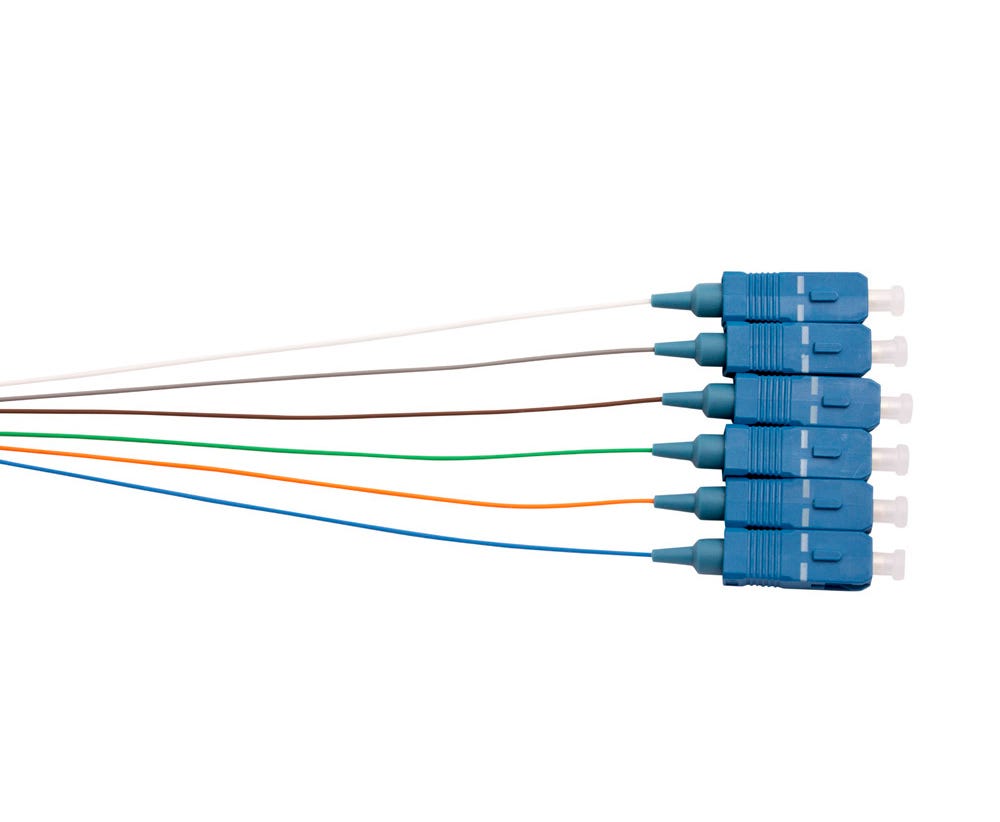

Six-Core Configuration for Fibre Installations

Supplied in a six-core configuration, these MSS Fibre pigtails are suited to installations where multiple fibre connections need to be prepared and managed. Each pigtail features an SC connector, providing a specified connector interface for compatible fibre optic equipment and termination systems. The 2-metre length offers flexibility when planning fibre routing and arranging connections within suitable enclosures or distribution systems.

900 µm LSZH Tight-Buffered Construction

Each pigtail uses a 900 µm tight-buffered fibre construction with a Low Smoke Zero Halogen (LSZH) outer material. This construction is intended for professional fibre installation environments where cable routing, handling and material selection are important considerations. The LSZH material designation is relevant when selecting components for projects with specific cable material requirements. Always confirm suitability against the applicable installation specifications.

OS2 Fibre Compliance and Product Traceability

The OS2 fibre conforms to ITU-T G.652.D and TIA/EIA 492 CAAB specifications, supporting selection for compatible single-mode fibre infrastructure. Individual fibres are colour-coded in accordance with IEC 60304 and TIA-598 to assist with identification during installation and fibre management. The pigtails are packaged and labelled in a six- or twelve-pack format, with protection, performance data and traceability information. The listed PSC2M/900-SMC6 model specifies six cores. Materials are stated to comply with REACH, RoHS and Substances of Very High Concern (SVHC) requirements.

For electrical contractors, telecommunications installers and network infrastructure teams, these MSS Fibre pigtails offer a clearly specified option for compatible fibre termination projects. Check connector compatibility, fibre requirements and installation conditions before ordering.

Key Specs

• Brand: MSS Fibre

• Model: PSC2M/900-SMC6

• Fibre mode: Single-mode (SM)

• Fibre type: OS2

• Connector type: SC

• Pigtail length: 2 metres

• Number of cores: 6

• Buffer construction: 900 µm tight-buffered

• Buffer material: Low Smoke Zero Halogen (LSZH)

• Fibre standards: ITU-T G.652.D and TIA/EIA 492 CAAB

• Fibre colour coding: IEC 60304 and TIA-598

• Material compliance: REACH, RoHS and SVHC

Ideal For

• Fibre optic cable termination and network installation projects.

• Telecommunications infrastructure and data cabling work.

• Single-mode fibre systems requiring compatible SC connector pigtails.

• Fibre distribution and connection management in suitable enclosures.

• Commercial installations requiring specified OS2 fibre components.

• Contractors seeking labelled, traceable fibre optic termination materials.
