MSS Fibre SC OM4 50UM PIGTAILS – 900UM 2M C6PK PSC2M/900-MM4-C6

Description

Reliable OM4 Multimode Fibre Connections

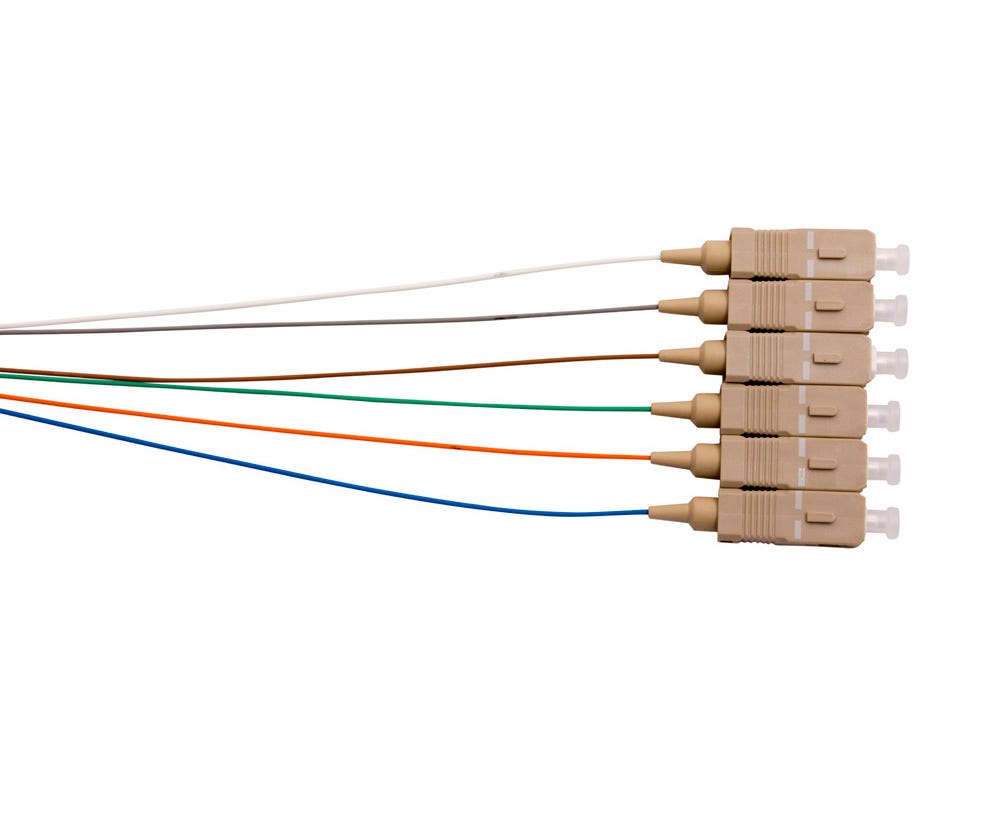

The MSS Fibre SC OM4 50µm Pigtails are designed for fibre optic termination in network infrastructure and communications installations. Supplied in a six-core configuration, these 2m pigtails feature SC connectors and OM4 multimode fibre to support compatible fibre optic systems. They provide a practical option for installers requiring organised, specification-led fibre termination components for commercial and industrial cabling projects.

900µm LSZH Tight-Buffer Construction

Each pigtail features a 900µm tight-buffer construction made with Low Smoke Zero Halogen (LSZH) material. This construction supports fibre handling during installation and termination, while the LSZH material specification is relevant to projects where low-smoke, halogen-free cable materials are required. The multimode fibre conforms to ITU G.651.1, and individual fibres are colour-coded in accordance with IEC 60304 and TIA-598 to assist with identification and organised fibre management.

Traceable Packaging and Material Compliance

Packaged and labelled for protection, performance data and traceability, these MSS Fibre pigtails help installers identify and manage fibre components during installation and maintenance work. The product’s materials comply with REACH, RoHS and SvHC requirements, supporting material compliance considerations for telecommunications and structured cabling projects. Before installation, confirm that the OM4 multimode specification, SC connector type and pigtail configuration are compatible with the intended equipment and fibre network.

Key Specs

• Brand: MSS Fibre

• Part Number: PSC2M/900-MM4-C6

• Fibre Mode: OM4 multimode

• Fibre Core Size: 50µm

• Connector Type: SC

• Connector Polish: UPC, as indicated in the product description

• Length: 2m

• Fibre Count: 6 cores

• Buffer Construction: 900µm tight buffer

• Buffer Material: Low Smoke Zero Halogen (LSZH)

• Fibre Standard: ITU G.651.1

• Fibre Colour Coding: IEC 60304 and TIA-598

• Material Compliance: REACH, RoHS and SvHC

• Packaging: Packaged and labelled with protection, performance data and traceability

Ideal For

• Fibre optic termination in compatible OM4 multimode networks.

• Structured cabling installations in commercial buildings.

• Telecommunications and data communications infrastructure projects.

• Network installers requiring six-core fibre pigtail configurations.

• Fibre identification and management using standardised colour coding.

• Maintenance and expansion of compatible fibre optic systems.
