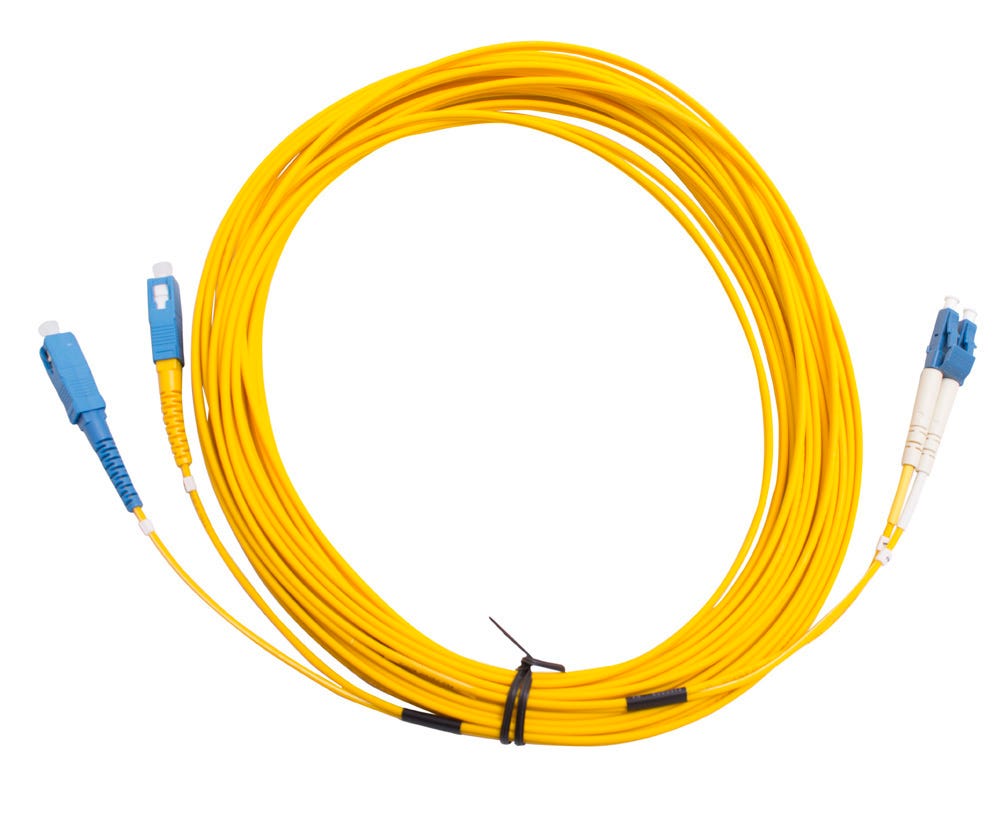

MSS Fibre SC-LC DUPLEX SM PATCHLEAD 15 MTR DSCLC15M-SM

Description

Reliable Fibre Optic Connectivity

The MSS Fibre Systems patch lead provides a practical connection solution for singlemode fibre optic networks. Its SC connector on one end and LC connector on the other support connections between compatible equipment and panels with different connector interfaces. The duplex configuration accommodates two fibre paths in a single cable assembly, making it suitable for network links requiring transmit and receive connections.

Factory-terminated connectors help simplify installation by reducing the need for on-site connector termination. This can save time during network commissioning, equipment changes and routine maintenance while providing a ready-to-use patching solution.

Designed for Telecommunications and Data Networks

Designed for singlemode applications, this patch lead is suited to telecommunications networks and high-speed metropolitan access networks. Its stated applications include CATV/video systems, passive optical networks (PON), wavelength-division multiplexing (WDM), dense wavelength-division multiplexing (DWDM) and fibre-to-the-home (FTTH) installations.

The yellow cable jacket provides a readily identifiable appearance for fibre infrastructure. At 15 metres long, the cable offers flexibility when connecting equipment positioned away from distribution panels or within larger equipment layouts. Confirm connector compatibility and the required fibre specification before installation.

LSZH Sheath for Installation Environments

The 2mm LSZH cable sheath is designed to produce low smoke and no halogen gases when exposed to fire, making it a useful consideration for installations where cable smoke and material emissions matter. The patch lead is specified for up to 500 mating cycles in accordance with IEC 61300-2-2, supporting repeated connection and disconnection during equipment servicing and network changes.

For electricians, communications contractors and maintenance teams, the MSS Fibre SC-LC Duplex Patch Lead offers a straightforward option for fibre patching work. Select this 15-metre singlemode assembly when its connector types, duplex configuration and fibre requirements match the intended installation.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCLC15M-SM

• Product type: Fibre optic patch lead

• Fibre mode: Singlemode (SM)

• Fibre specification: OS1/OS2 stated in product information

• Connector end A: SC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 15 metres

• Sheath diameter: 2mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycles: Up to 500 (IEC 61300-2-2)

• Standards stated: ITU-T G.652.D and TIA/EIA-492-CAAA

Ideal For

• Connecting compatible fibre optic equipment to distribution panels.

• Telecommunications rooms and data centre patching.

• Singlemode fibre network installations.

• CATV and video distribution systems.

• Passive optical network (PON) infrastructure.

• WDM and DWDM network applications.

• Fibre-to-the-home (FTTH) connections.

• Network upgrades, maintenance and equipment replacement.
