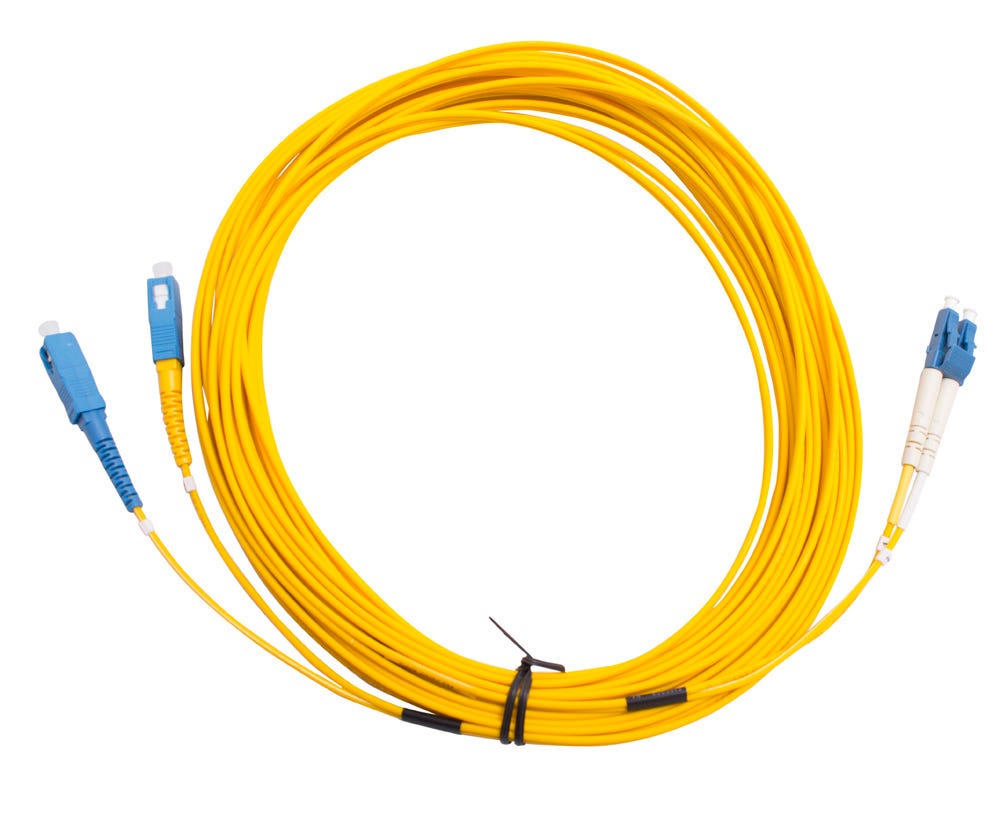

MSS Fibre SC-LC DUPLEX SM PATCHLEAD 10 MTR DSCLC10M-SM

Description

Reliable Fibre Optic Connectivity

The MSS Fibre patch lead is factory-terminated to provide a ready-to-use connection for compatible singlemode fibre systems. Its SC-to-LC connector configuration suits installations where equipment and patch panels use different connector interfaces. The duplex design supports separate transmit and receive fibre paths, making it suitable for compatible two-way optical communication systems.

Designed for Telecommunications and Data Networks

Using singlemode fibre, this patch lead is intended for applications requiring optical connectivity across telecommunications and high-speed metropolitan access networks. It is suitable for use in data centres, telecommunications rooms and fibre equipment patching. Supported application areas include CATV/video, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH), subject to system compatibility.

Practical Cable Construction for Installation

The 10-metre cable features a 2 mm Low Smoke Zero Halogen (LSZH) sheath and a yellow jacket for easy identification within fibre installations. The LSZH sheath material is designed to reduce smoke and eliminate halogens from the cable jacket formulation. With a stated rating of up to 500 mating cycles under IEC 61300-2-2, the patch lead is suited to compatible connections that may require repeated mating and disconnection.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCLC10M-SM

• Fibre mode: Singlemode (SM)

• Fibre type: OS1/OS2

• Connector end A: SC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 10 metres

• Cable diameter: 2 mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Mating cycles: Up to 500 (IEC 61300-2-2)

• Fibre standards: ITU-T G.652.D and TIA/EIA-492-CAAA, as specified

Ideal For

• Data centre fibre optic connections and equipment patching

• Telecommunications rooms and network infrastructure installations

• Connecting compatible SC and LC fibre interfaces

• Singlemode fibre networks and metropolitan access systems

• CATV/video, PON, WDM/DWDM and FTTH applications

• Electrical contractors and telecommunications technicians maintaining fibre optic systems
