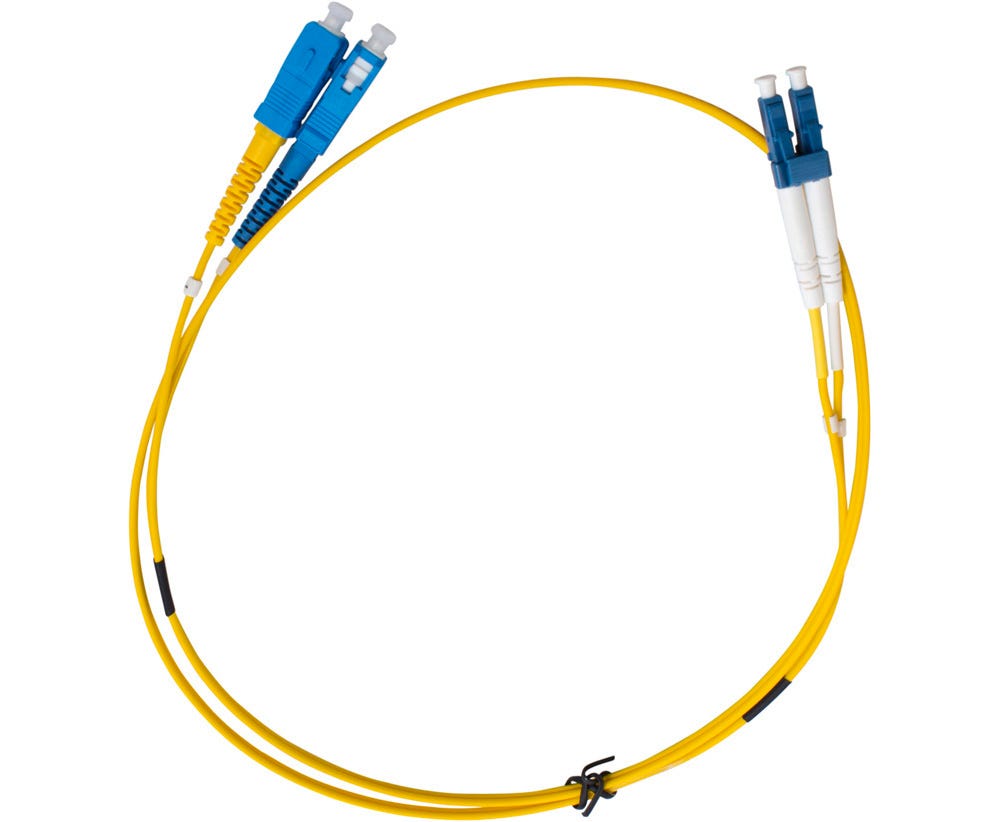

MSS Fibre SC-LC DUPLEX SM PATCHLEAD 1 MTR DSCLC1M-SM

Description

Reliable Fibre Optic Connectivity for Network Installations

The MSS Fibre Systems SC-LC Duplex Singlemode Patch Lead provides a practical solution for connecting active network equipment to fibre optic panels and other compatible connections. Its SC-to-LC connector configuration supports installations where equipment and termination panels use different connector types.

Featuring singlemode fibre, this patch lead is suited to telecommunications networks and high-speed metropolitan access networks. Its duplex construction accommodates two optical fibre paths, making it suitable for network connections that require separate transmit and receive paths.

Compact Design with a Durable LSZH Sheath

Measuring 1 metre in length, the DSCLC1M-SM offers a compact connection option for equipment racks, telecommunications cabinets, and data centre installations. The shorter cable length can help keep patching arrangements organised while reducing unnecessary cable slack around network equipment.

The yellow, 2mm LSZH (Low Smoke Zero Halogen) outer sheath provides a clearly identifiable cable finish for singlemode fibre installations. LSZH materials are designed to limit smoke and halogen emissions compared with conventional halogen-containing cable materials when exposed to fire. This makes the sheath material a useful consideration when selecting cables for indoor infrastructure.

Factory-Terminated Connectors for Convenient Installation

Factory-terminated connectors help simplify patching by providing pre-assembled connection ends, reducing the need for field connector termination during routine installation. The lead is specified for up to 500 mating cycles in accordance with IEC 61300-2-2.

Suitable applications include CATV and video systems, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM), and Fibre to the Home (FTTH) installations. Before ordering, confirm that the connector interfaces, singlemode fibre requirements, and cable length match the equipment and network design.

Key Specs

• Brand: MSS Fibre Systems

• Model: DSCLC1M-SM

• Product type: Fibre optic patch lead

• Fibre mode: Singlemode (SM)

• Connector end A: SC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 1 metre

• Cable sheath: 2mm LSZH

• Jacket colour: Yellow

• Mating cycle rating: Up to 500 cycles (IEC 61300-2-2)

Ideal For

• Connecting compatible fibre optic equipment to patch panels

• Telecommunications network installations and maintenance

• Data centre and telecommunications room patching

• High-speed metropolitan access networks

• CATV and video distribution systems

• Passive Optical Network (PON) infrastructure

• WDM/DWDM fibre optic networks

• Fibre to the Home (FTTH) installations
