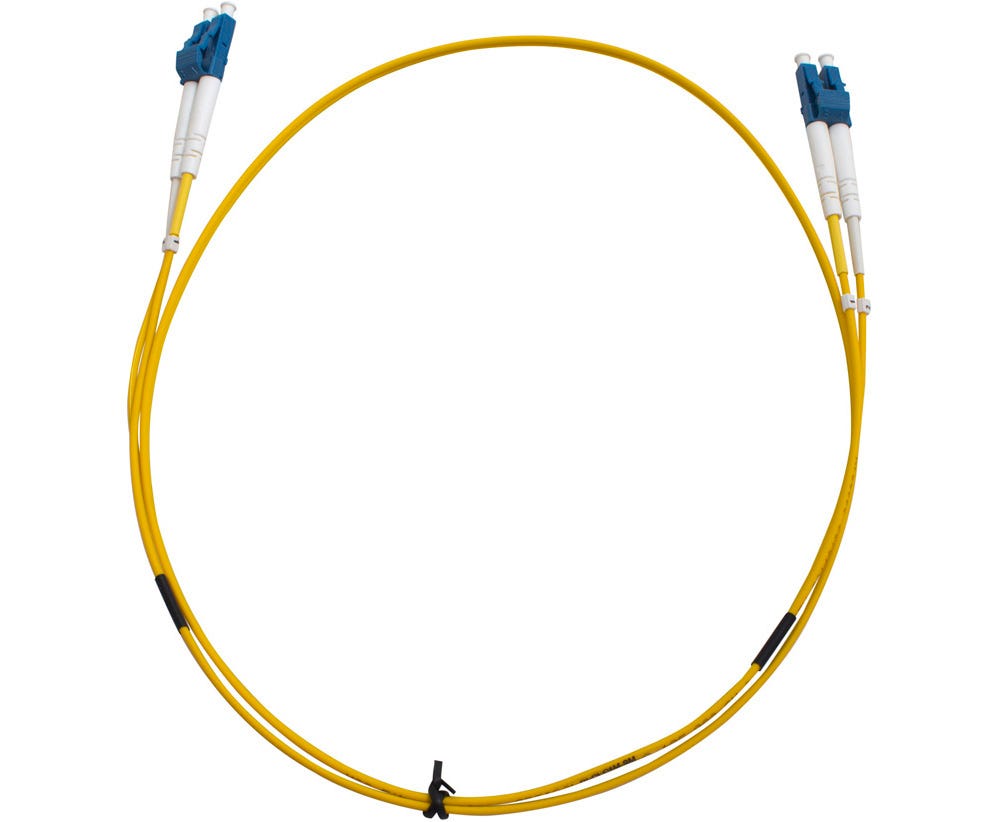

MSS Fibre LC-LC DUPLEX SM PATCHLEAD 5 MTR DLCLC5M-SM

Description

Duplex Singlemode Fibre Connectivity

Designed for singlemode (SM) fibre applications, this patch lead is suitable for telecommunications networks and high-speed metropolitan access networks. Its duplex configuration supports two-fibre connections, making it useful for equipment and network interfaces that require separate transmit and receive paths. LC connectors on both ends provide a consistent connection format for compatible fibre optic equipment and panels.

Durable LSZH Cable Construction

The patch lead features a 2mm low-smoke, zero-halogen (LSZH) cable sheath. This construction helps reduce smoke and halogen emissions compared with conventional halogen-containing cable materials when exposed to fire, making it a practical consideration for installations where cable material selection matters. The yellow cable jacket also helps identify the singlemode fibre lead within organised network cabinets, telecommunications rooms and data centre environments.

Versatile Applications and Installation

With a 5-metre cable length, the MSS Fibre patch lead offers flexibility when connecting equipment positioned at a distance from fibre distribution panels. It is suited to applications including cable television (CATV) and video, passive optical networks (PON), wavelength-division multiplexing (WDM/DWDM) and fibre-to-the-home (FTTH) systems. Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, it is designed to accommodate repeated connector mating during installation, maintenance and equipment changes.

For electrical contractors, telecommunications installers and network maintenance teams, this factory-terminated patch lead provides a convenient option for compatible singlemode fibre installations. Confirm connector compatibility and the required fibre specifications before installation.

Key Specs

• Brand: MSS Fibre Systems

• Model: DLCLC5M-SM

• Fibre mode: Singlemode (SM)

• Connector end A: LC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 5 metres

• Cable sheath: 2mm LSZH

• Jacket colour: Yellow

• Mating cycles: Up to 500

• Mating cycle standard: IEC 61300-2-2

• Fibre standard: ITU-T G.652.D, as specified in the supplied product information

Ideal For

• Telecommunications network installations and maintenance

• Data centres and telecommunications rooms

• Fibre optic equipment-to-panel patching

• Compatible singlemode fibre networking systems

• CATV and video distribution infrastructure

• PON and WDM/DWDM applications

• FTTH network installations

• Electrical contractors and network technicians requiring factory-terminated LC-LC duplex leads
