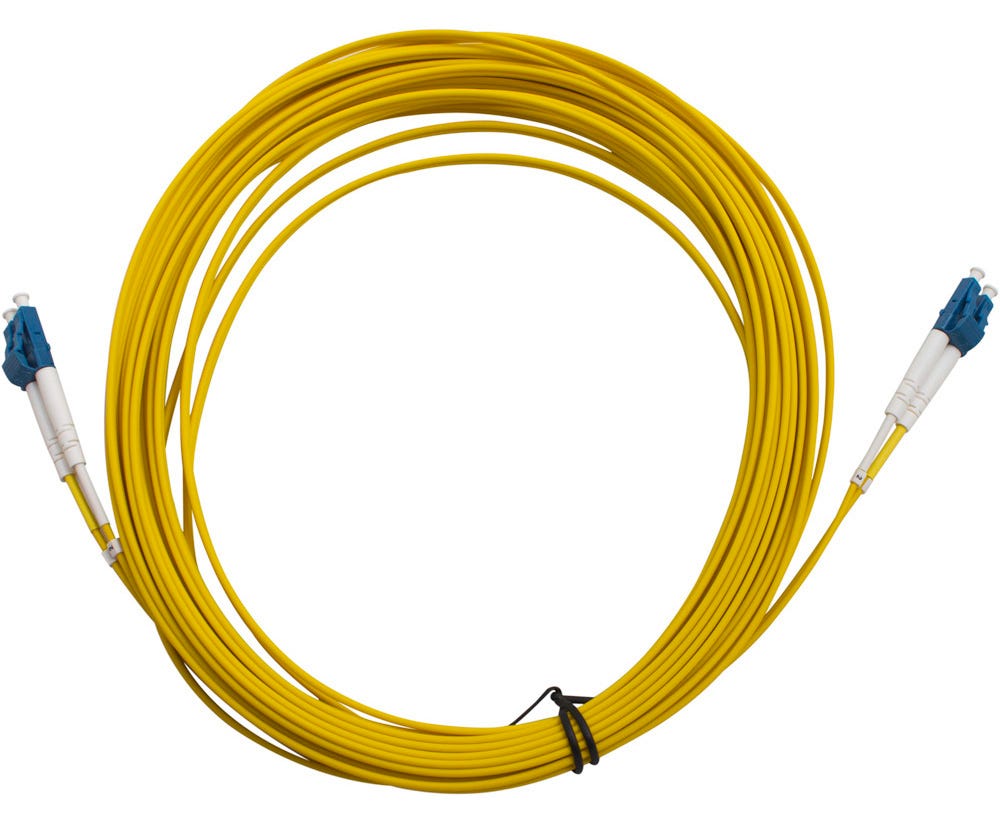

MSS Fibre LC-LC DUPLEX SM PATCHLEAD 30 MTR DLCLC30M-SM

Description

Reliable Fibre Optic Connectivity

The MSS Fibre DLCLC30M-SM patch lead provides a practical solution for connecting compatible fibre optic equipment and patch panels. Featuring LC connectors at both ends, this duplex singlemode cable is designed for applications requiring two-way fibre connectivity. Its factory-terminated connectors simplify installation by eliminating the need for on-site connector termination, helping technicians complete patching tasks efficiently.

Designed for Telecommunications Networks

Built for singlemode fibre applications, this patch lead is suitable for telecommunications networks and high-speed metropolitan access networks. Its listed applications include CATV and video systems, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM), Dense Wavelength Division Multiplexing (DWDM) and Fibre to the Home (FTTH). The yellow cable jacket helps with visual identification during installation, maintenance and cable management.

Practical Construction for Professional Installations

The patch lead features a 2 mm LSZH sheath, made from low-smoke, zero-halogen material. This construction helps reduce smoke and halogen emissions compared with conventional halogen-containing cable materials when exposed to fire. The cable is specified for up to 500 mating cycles in accordance with IEC 61300-2-2, supporting repeated connection and disconnection during routine network maintenance. At 30 metres long, it offers additional reach for equipment layouts where shorter patch leads may not be suitable.

Key Specs

• Brand: MSS Fibre Systems

• Model: DLCLC30M-SM

• Cable type: Singlemode fibre optic patch lead

• Fibre configuration: Duplex

• Connector end A: LC

• Connector end B: LC

• Cable length: 30 metres

• Cable diameter: 2 mm

• Sheath material: LSZH (Low Smoke Zero Halogen)

• Jacket colour: Yellow

• Mating cycles: Up to 500, according to IEC 61300-2-2

• Standards listed: ITU-T G.652.D and TIA/EIA-492-CAAA

Ideal For

• Telecommunications network installations and maintenance

• Data centres and telecommunications rooms

• Connecting compatible active fibre equipment to patch panels

• High-speed metropolitan access networks

• CATV and video distribution systems

• Passive Optical Network (PON) installations

• WDM and DWDM fibre network applications

• Fibre to the Home (FTTH) infrastructure

• Professional installers requiring a factory-terminated 30-metre LC-to-LC duplex lead
