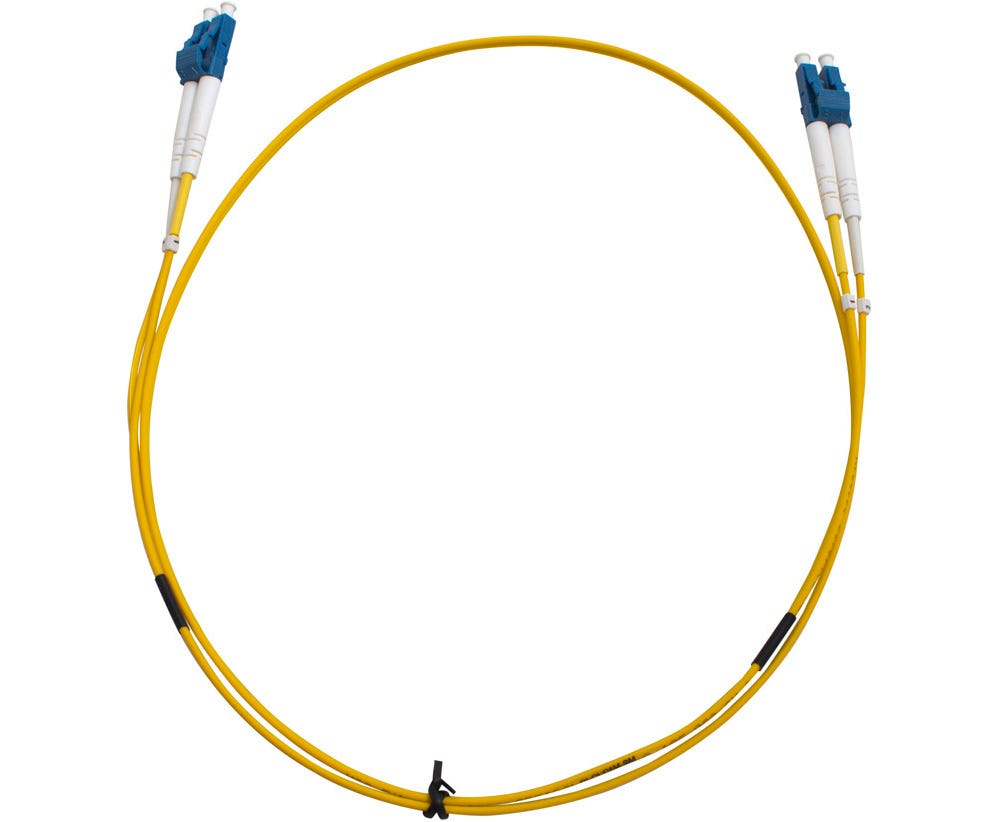

MSS Fibre LC-LC DUPLEX SM PATCHLEAD 3 MTR DLCLC3M-SM

Description

Reliable Fibre Connectivity for Network Installations

The MSS Fibre Systems patch lead provides a practical connection solution for telecommunications rooms, data centres and fibre equipment installations. With LC connectors on both ends, it is designed to connect compatible LC interfaces across network equipment and fibre panels. The duplex configuration accommodates two optical fibre connections within one cable assembly, supporting common transmit-and-receive arrangements in fibre optic systems.

Singlemode Performance and Versatile Applications

Designed for singlemode fibre networks, this patch lead is suitable for applications including CATV and video distribution, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH). Singlemode patch leads are commonly used in telecommunications networks and high-speed metropolitan access infrastructure.

The supplied specifications identify compliance with ITU-T G.652.D and TIA/EIA-492-CAAA requirements. Confirm the applicable product documentation when project specifications require formal standards verification.

LSZH Jacket for Installation Environments

The cable features a 2 mm Low Smoke Zero Halogen (LSZH) sheath and a yellow outer jacket. LSZH cable materials are designed to limit smoke and halogen acid gas emissions compared with conventional halogen-containing cable materials under specified fire conditions. The yellow jacket also provides a readily identifiable colour for singlemode fibre cabling.

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, this patch lead is suited to applications where connectors may need to be repeatedly connected and disconnected during installation, testing or maintenance.

Key Specs

• Brand: MSS Fibre Systems

• Model: DLCLC3M-SM

• Fibre mode: Singlemode (SM)

• Connector end A: LC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 3 m, as stated in the product title; confirm against the supplied technical specification

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket diameter: 2 mm

• Jacket colour: Yellow

• Mating cycles: Up to 500, IEC 61300-2-2

• Specified standards: ITU-T G.652.D and TIA/EIA-492-CAAA

Ideal For

• Data centre fibre optic patching and equipment connections

• Telecommunications rooms and network distribution panels

• Singlemode fibre network installations

• CATV and video distribution systems

• Passive Optical Network (PON) infrastructure

• WDM and DWDM optical networking applications

• Fibre to the Home (FTTH) connections

• Network upgrades, troubleshooting and maintenance
