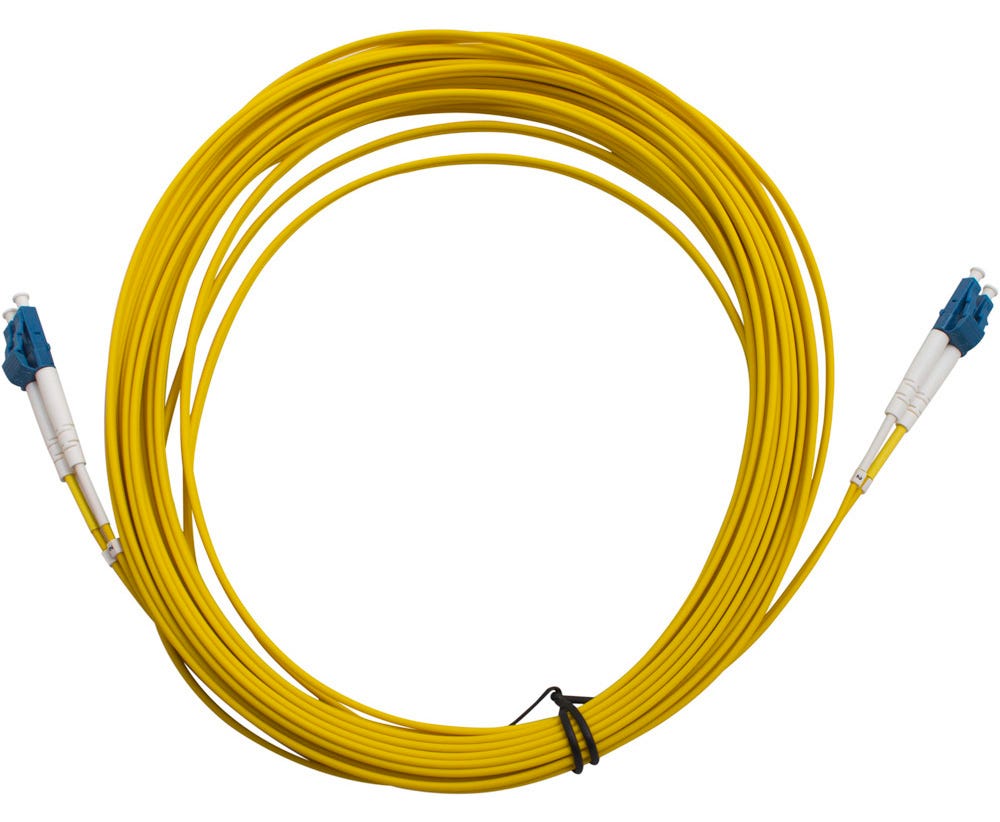

MSS Fibre LC-LC DUPLEX SM PATCHLEAD 15 MTR DLCLC15M-SM

Description

Reliable Singlemode Fibre Connectivity

Designed for singlemode fibre applications, this patch lead is suitable for telecommunications networks and high-speed metropolitan access networks. It supports fibre optic connections used in CATV and video systems, Passive Optical Networks (PON), Wavelength Division Multiplexing (WDM/DWDM) and Fibre to the Home (FTTH) installations.

With LC connectors at both ends, the lead provides a consistent connector format for compatible equipment and patch panels. The 15-metre length offers flexibility when connecting devices across equipment racks, communications cabinets and other network installations where additional cable reach is required.

Factory-Terminated LC Connectors

The MSS Fibre patch lead comes factory-terminated with LC connectors at both ends, helping reduce the need for on-site connector termination. Its duplex configuration accommodates separate optical paths for transmitting and receiving signals, subject to the requirements of the connected equipment.

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, the connectors are suited to applications involving repeated connection and disconnection. This makes the patch lead a practical option for network changes, equipment maintenance and routine telecommunications work.

LSZH Sheath for Installation Environments

The cable features a 2 mm Low Smoke Zero Halogen (LSZH) sheath and a yellow jacket for easy identification. LSZH cable materials are designed to limit smoke and halogen acid gas emissions compared with conventional halogen-containing materials when exposed to fire.

Compliant fibre selection and cable management remain important when planning network infrastructure. Verify connector compatibility, fibre requirements and installation conditions before ordering to ensure the patch lead suits the intended application.

Key Specs

• Brand: MSS Fibre Systems

• Model: DLCLC15M-SM

• Fibre mode: Singlemode (SM)

• Fibre type: OS1/OS2 as specified for the product range

• Connector end A: LC

• Connector end B: LC

• Configuration: Duplex

• Cable length: 15 metres

• Cable diameter: 2 mm

• Jacket material: Low Smoke Zero Halogen (LSZH)

• Jacket colour: Yellow

• Connector durability: Up to 500 mating cycles

• Mating cycle reference: IEC 61300-2-2

• Referenced fibre standard: ITU-T G.652.D; TIA/EIA 492 CAAA

Ideal For

• Data centre equipment and fibre patch panel connections.

• Telecommunications rooms and network cabinets.

• Singlemode fibre network installations and maintenance.

• Compatible CATV and video infrastructure.

• Passive Optical Network (PON) applications.

• WDM/DWDM fibre optic systems.

• Fibre to the Home (FTTH) network connections.

• Connecting compatible active equipment over a 15-metre distance.
