MSS Fibre LC-LC DUPLEX OM4 PATCHLEAD – 5 MTR DLCLC5M-MM4

Description

Reliable Fibre Connections for Network Infrastructure

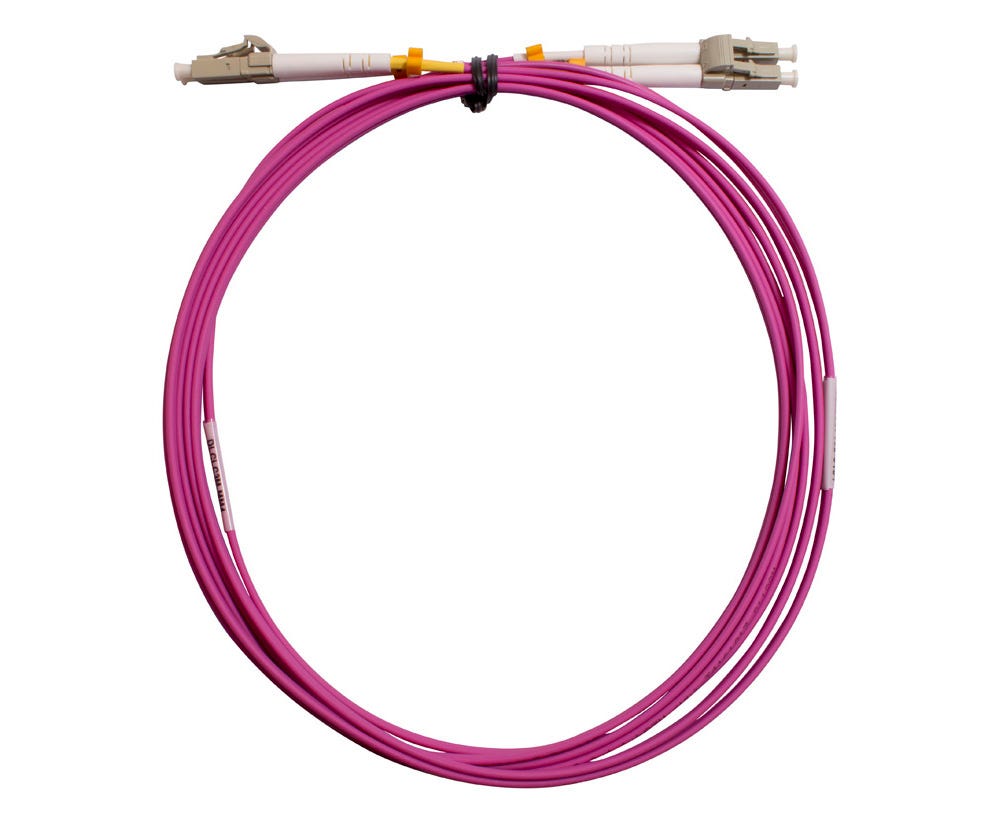

The MSS Fibre LC-LC Duplex OM4 Patch Lead is designed for connecting active network equipment to fibre optic patch panels in data centres and structured cabling installations. Featuring OM4 multimode fibre and LC connectors at both ends, this 5-metre patch lead provides a practical connection solution for compatible fibre optic networking equipment.

Its duplex configuration supports two-way optical communication through separate fibre paths, making it suitable for network links that require simultaneous transmission and reception. The factory-terminated connectors simplify installation by providing ready-made connections without requiring on-site connector termination, helping streamline cabling work and reduce installation time.

OM4 Multimode Fibre and LC Connectors

Built around OM4 multimode fibre, this patch lead is intended for use in compatible high-bandwidth optical networks. Its LC-LC connector arrangement allows connections between equipment and patch panels fitted with matching LC interfaces. The compact LC connector format is commonly used in fibre optic installations where efficient use of rack and panel space is important.

With a 5-metre cable length, it offers flexibility when connecting equipment positioned within racks, cabinets or nearby network infrastructure. Confirm that the fibre type, connector interface and required optical performance match the specifications of the equipment and link before installation.

LSZH Jacket for Commercial Installations

The cable features a low-smoke, zero-halogen (LSZH) sheath in Erika Violet, making it easy to identify within organised fibre optic cabling systems. LSZH materials are designed to limit smoke and halogen acid gas emissions compared with conventional halogen-containing cable jackets when exposed to fire. Actual fire performance depends on the cable’s construction and applicable certifications.

Rated for up to 500 mating cycles in accordance with IEC 61300-2-2, the patch lead is suitable for installations where connectors may need to be disconnected and reconnected during servicing or network changes. Handle the fibre carefully and observe the manufacturer’s connector cleaning and inspection recommendations to help maintain reliable optical performance.

Key Specs

• Brand: MSS

• Product Code: DLCLC5M-MM4

• Fibre Mode: OM4 multimode

• Connector End A: LC

• Connector End B: LC

• Configuration: Duplex

• Cable Length: 5 metres

• Jacket Material: LSZH (Low Smoke Zero Halogen)

• Jacket Colour: Erika Violet

• Mating Cycles: Up to 500, per IEC 61300-2-2

• Termination: Factory terminated

Ideal For

• Data centre fibre optic connections.

• Connecting active network equipment to fibre patch panels.

• Structured cabling installations using compatible OM4 multimode fibre.

• Network rack and cabinet interconnections.

• Commercial and industrial network infrastructure.

• Fibre optic maintenance, equipment replacement and network upgrades.

• Installations requiring LC connectors and a 5-metre duplex patch lead.
