MSS Fibre CABLE DUPLEX 3.0MM OS1 YELLOW CAB-D3.0-SM-YL

Description

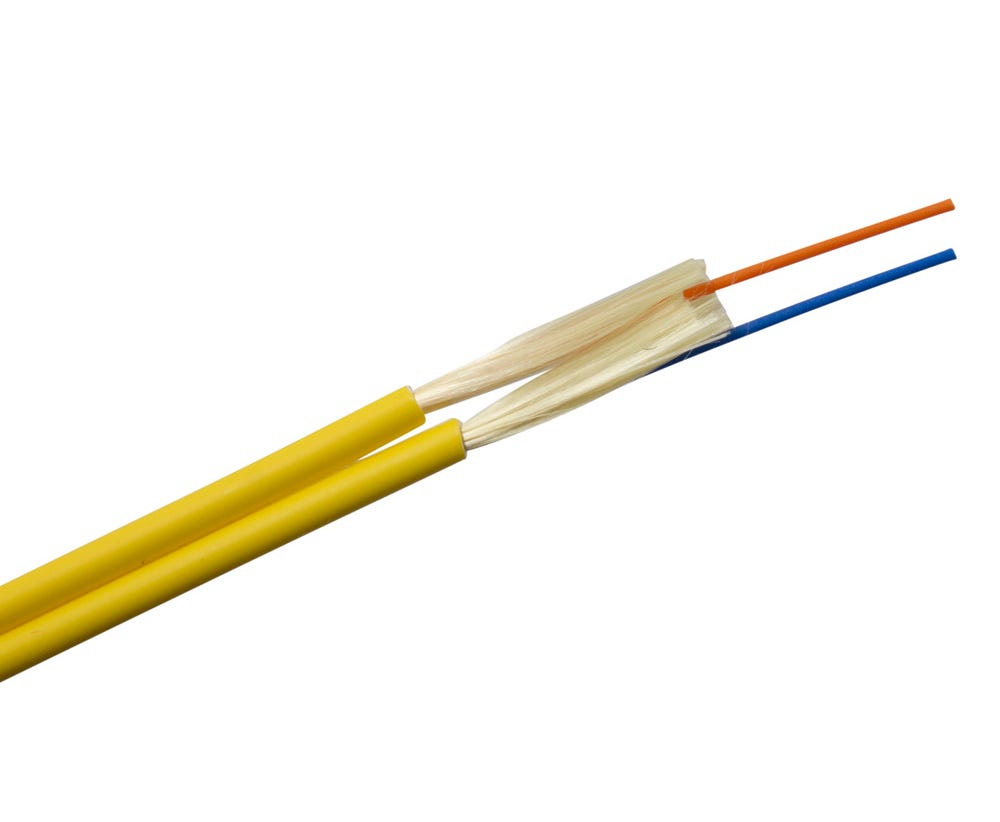

MSS Duplex 3.0mm OS1 Single Mode Fibre Cable

The MSS Fibre Duplex 3.0mm OS1 Cable is designed for fibre optic installations requiring a practical, two-core single mode cable. Identified by product code CAB-D3.0-SM-YL, it features a yellow outer jacket and duplex zip-cord construction, making it suitable for compatible telecommunications, data networking and fibre infrastructure applications.

The duplex design combines two optical fibres in a figure-8 profile, providing a convenient format for installations that require paired fibre connections. Its 3.0mm cable size offers a compact option for cable routing and network layouts where an appropriately sized duplex fibre cable is required.

LSZH Sheath for Indoor Installations

This MSS fibre cable features a low smoke zero halogen (LSZH) outer sheath. LSZH materials are designed to reduce smoke and halogen emissions compared with conventional halogen-containing materials when exposed to fire. This can be an important consideration when selecting cables for indoor environments, subject to the applicable installation and building requirements.

The yellow jacket provides a clearly identifiable cable colour that can assist with cable management, identification and maintenance. Its non-armoured construction makes it important to assess the installation route and determine whether additional mechanical protection is necessary.

Straightforward Stripping and Termination

Designed for practical installation work, the duplex zip-cord construction allows the two fibre sections to be separated as required for suitable termination arrangements. The cable is described as easy to strip and terminate, helping technicians prepare fibre connections during installation, repair and maintenance work.

The OS1 single mode specification makes this cable an option for compatible single mode fibre systems. Before purchasing, installers should verify connector compatibility, optical performance requirements, cable routing conditions and the intended application to ensure the product meets project specifications.

Key Specs

• Brand: MSS Fibre

• Product code: CAB-D3.0-SM-YL

• Cable type: Duplex fibre optic cable

• Fibre mode: OS1 single mode (SM)

• Number of fibre cores: 2

• Cable size: 3.0mm

• Construction: Duplex zip-cord / figure-8

• Outer sheath: LSZH (Low Smoke Zero Halogen)

• Jacket colour: Yellow

• Armoured: No

• Sacrificial sheath: No

• Installation feature: Easy to strip and terminate

Ideal For

• Single mode fibre optic installations

• Telecommunications and data network infrastructure

• Paired fibre connections in compatible systems

• Commercial building network cabling

• Fibre termination, repair and maintenance work

• Installations requiring a yellow LSZH duplex cable
