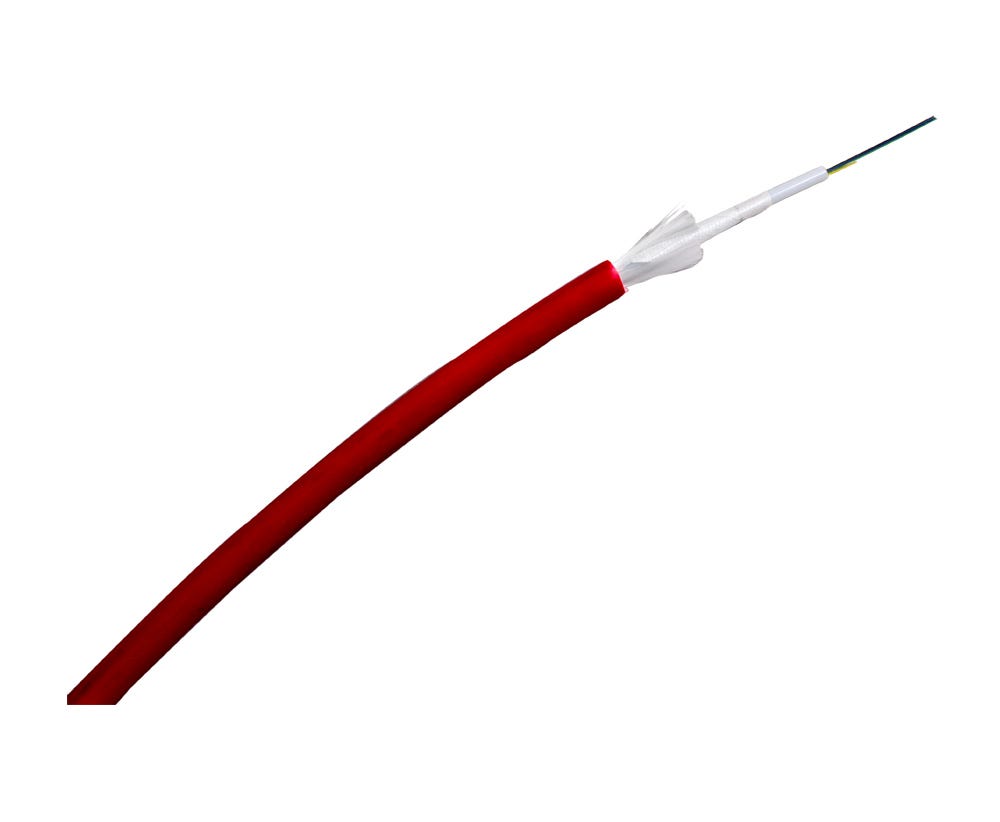

MSS Fibre 6F FIRE RATED MONO TUBE CABLE SM CAB-MT-06-SMFR

Description

MSS Fibre 6F Fire Rated Mono Tube Cable – Single Mode

The MSS Fibre CAB-MT-06-SMFR is a 6-fibre single mode fire rated mono tube cable designed for installations requiring fibre optic connectivity and maintained circuit integrity under specified fire conditions. Its fire-resistant construction makes it suitable for applications where communication infrastructure must meet defined fire performance requirements.

Designed to withstand fire exposure for up to 120 minutes at 750°C in accordance with IEC 60331-25, the cable has a maximum stated increase in attenuation of 0.5dB under the specified test conditions. This performance characteristic supports project requirements where continued optical performance during fire exposure is important.

Fire-Resistant Construction for Demanding Installations

The cable incorporates heat-resistant mica tape and glass yarn reinforcement to support its fire-resistant construction. These materials help protect the cable structure when exposed to elevated temperatures under the specified test conditions.

A red LSZH (Low Smoke Zero Halogen) outer jacket provides clear visual identification and is specified as UV resistant. LSZH materials are designed to limit smoke and halogen acid gas emissions compared with conventional halogen-containing cable materials when exposed to fire. Actual performance depends on the cable’s material properties and applicable test conditions.

The jelly-filled mono tube construction provides a defined internal arrangement for the six optical fibres. This design combines fibre organisation with the cable’s protective materials for demanding building and infrastructure applications.

Suitable for Fire-Resistant Fibre Infrastructure

The MSS Fibre 6F Fire Rated Mono Tube Cable is intended for projects where fire performance, fibre connectivity and cable identification are important considerations. Its single mode configuration supports compatible optical communication systems, while the red jacket helps distinguish the cable from other installed services.

Before installation, confirm that the cable’s fire rating, optical specifications, environmental characteristics and installation method meet the project design, applicable Australian requirements and relevant authority specifications.

Key Specs

• Brand: MSS Fibre

• Model: CAB-MT-06-SMFR

• Cable type: Fire rated mono tube fibre optic cable

• Fibre mode: Single mode (SM)

• Number of fibres: 6

• Fire resistance: Up to 120 minutes at 750°C

• Fire test standard: IEC 60331-25

• Maximum attenuation increase: 0.5dB under specified test conditions

• Cable construction: Jelly-filled mono tube

• Fire-resistant materials: Mica tape and glass yarns

• Outer jacket: LSZH, UV resistant

• Jacket colour: Red

Ideal For

• Fire-resistant fibre optic infrastructure

• Building communication systems requiring specified fire performance

• Commercial and industrial infrastructure projects

• Fibre installations in buildings and service areas

• Electrical and communications contractors

• Projects requiring six-fibre single mode cable construction
