MSS Fibre 4F INDOOR/OUTDOOR RISER CABLE OM1 BLACK CAB-IOR-04-MM

Description

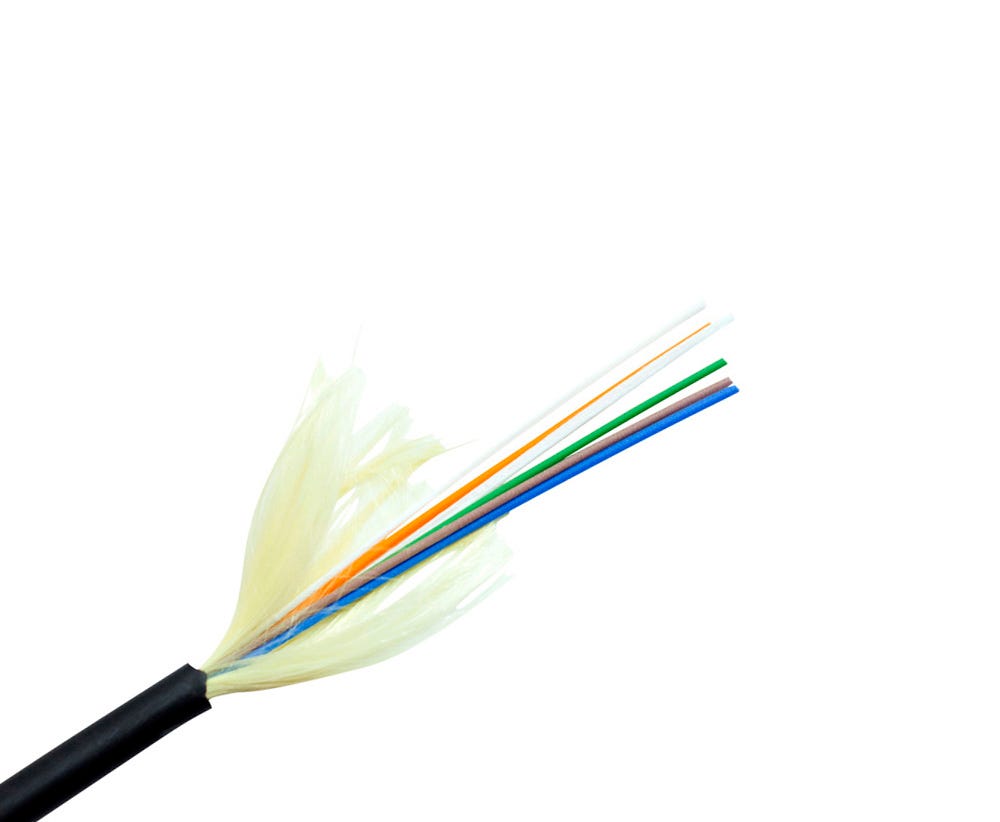

Flexible Four-Core Fibre Optic Construction

The MSS Fibre CAB-IOR-04-MM is a four-core OM1 multimode fibre optic cable designed for indoor and outdoor riser applications. Its construction combines 900 µm PVC tight-buffered fibres with a protective low smoke zero halogen (LSZH) outer sheath, providing a practical option for fibre infrastructure installations where flexibility and cable handling are important.

With four optical fibre cores, this cable supports compatible multimode fibre links in telecommunications, data communications and building network infrastructure. Its tight-buffered construction helps simplify fibre handling during installation, while the flexible, lightweight design makes routing and positioning more manageable across suitable cable pathways.

LSZH Sheath and Water-Blocking Construction

The cable features an LSZH outer sheath, a material choice intended to reduce smoke production and eliminate halogens from the sheath material compared with conventional halogenated compounds. These characteristics can be important considerations when selecting cabling for indoor building environments. Always confirm that the cable meets the fire-performance and installation requirements of the intended location.

Dry-block construction incorporates water-swellable materials to help limit water migration along the cable. Aramid reinforcing blocking yarns provide reinforcement within the cable construction, supporting practical handling and installation requirements.

The cable is specified as unarmoured and does not include a sacrificial sheath. These characteristics should be considered when assessing the required mechanical protection, routing method and environmental conditions of the installation.

Practical Choice for Fibre Infrastructure Projects

Designed for indoor/outdoor riser applications, the MSS Fibre 4F OM1 cable is suited to projects requiring a four-core multimode fibre configuration. It can be considered for compatible network links in commercial buildings, communications infrastructure and other installations where OM1 fibre is specified.

Before purchasing, verify compatibility with the existing fibre system, including the required multimode grade, connector arrangement, transmission requirements and installation environment. Selecting the correct cable specification helps ensure it meets the practical requirements of the project.

Key Specs

• Brand: MSS Fibre

• Model: CAB-IOR-04-MM

• Cable type: Indoor/outdoor riser fibre optic cable

• Fibre mode: OM1 multimode

• Number of fibre cores: 4

• Fibre construction: 900 µm PVC tight-buffered fibres

• Outer sheath: LSZH (Low Smoke Zero Halogen)

• Water protection: Dry-block, water-swellable materials

• Reinforcement: Aramid reinforcing blocking yarns

• Armoured: No

• Sacrificial sheath: No

• Listed jacket colour: Blue

Ideal For

• Indoor and outdoor riser cabling projects

• Commercial building network infrastructure

• Telecommunications and data communications installations

• Compatible OM1 multimode fibre links

• Structured cabling and fibre network upgrades

• Electrical contractors and fibre installation technicians
