MSS Fibre 24F LOOSE TUBE CABLE OM4 PEnYLON CAB-LT-24-MM4

Description

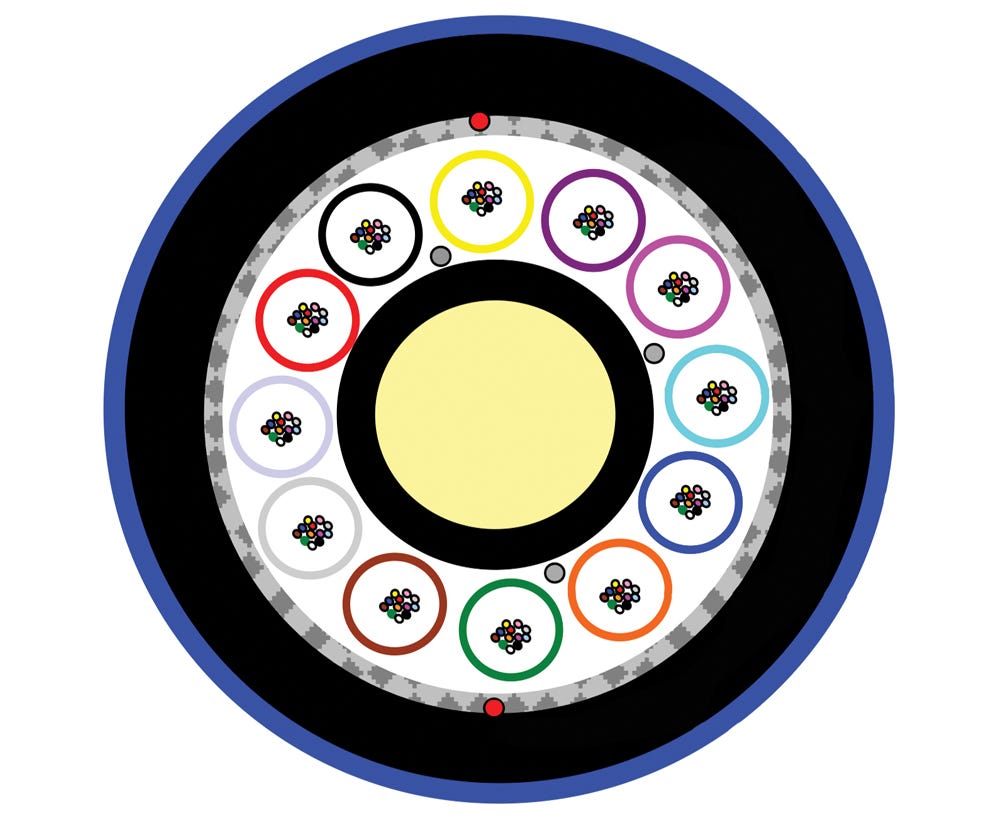

MSS Fibre 24F OM4 Loose Tube Cable

The MSS Fibre 24F Loose Tube Cable OM4 CAB-LT-24-MM4 is designed for outdoor fibre optic installations requiring a 24-core multimode cable with protection against environmental exposure. Its loose tube construction and protective outer layers make it suitable for direct burial underground installations, as well as conduit and duct applications.

With 24 optical fibres arranged in gel-filled loose tubes, this cable provides a practical solution for fibre network infrastructure where multiple optical connections are required. The OM4 multimode specification makes it suitable for compatible network systems designed around OM4 fibre, subject to the requirements of the installed equipment and network design.

Water-Blocking Construction and Cable Protection

The cable incorporates thixotropic gel-filled tubes to help prevent water ingress around the optical fibres. Water-blocking tape and water-swellable yarns provide additional protection within the cable core, helping reduce the risk of moisture travelling along the cable.

A black, UV-resistant polyethylene (PE) inner sheath provides a protective layer beneath the blue nylon outer jacket. The polyamide nylon jacket offers UV and insect or termite resistance, making the cable suitable for outdoor environments where these factors must be considered.

The central non-metallic strength member is made from fibre-reinforced plastic (FRP). This construction provides tensile strength without incorporating a metallic central strength member, while polyester-based rip cords assist with sheath removal during installation and termination preparation.

Practical for Underground Fibre Network Installations

Designed for professional telecommunications and data infrastructure projects, the MSS Fibre 24F OM4 loose tube cable combines a 24-fibre configuration with protective features suited to outdoor deployment. Its non-armoured construction is an important consideration when selecting cable for a particular installation route and required level of mechanical protection.

The blue outer jacket helps identify the cable during installation and maintenance. For electricians, fibre installers and project contractors, this cable offers a purpose-designed option for compatible multimode fibre links across underground, ducted and conduit-based network infrastructure.

Key Specs

• Brand: MSS Fibre

• Product code: CAB-LT-24-MM4

• Fibre mode: OM4 multimode

• Fibre count: 24 cores

• Construction: Loose tube

• Tube configuration: 12 fibres per tube, as specified in the supplied description

• Water protection: Gel-filled tubes, water-blocking tape and swellable yarns

• Central strength member: Non-metallic FRP

• Inner sheath: Black UV-resistant polyethylene (PE)

• Outer jacket: Blue UV- and insect/termite-resistant nylon

• Armoured: No

• Sacrificial sheath: No

• Installation applications: Direct burial, conduit and duct

Ideal For

• Underground fibre optic network installations

• Outdoor telecommunications infrastructure

• Data network backbone projects

• Ducted and conduit-based fibre installations

• Multimode OM4 network links

• Commercial and industrial network infrastructure

• Fibre installers requiring water-blocking and termite-resistant cable construction
