Transco Switch 3 Gang 10a Slim Elite S3E

Description

Compact 3-Gang Switching

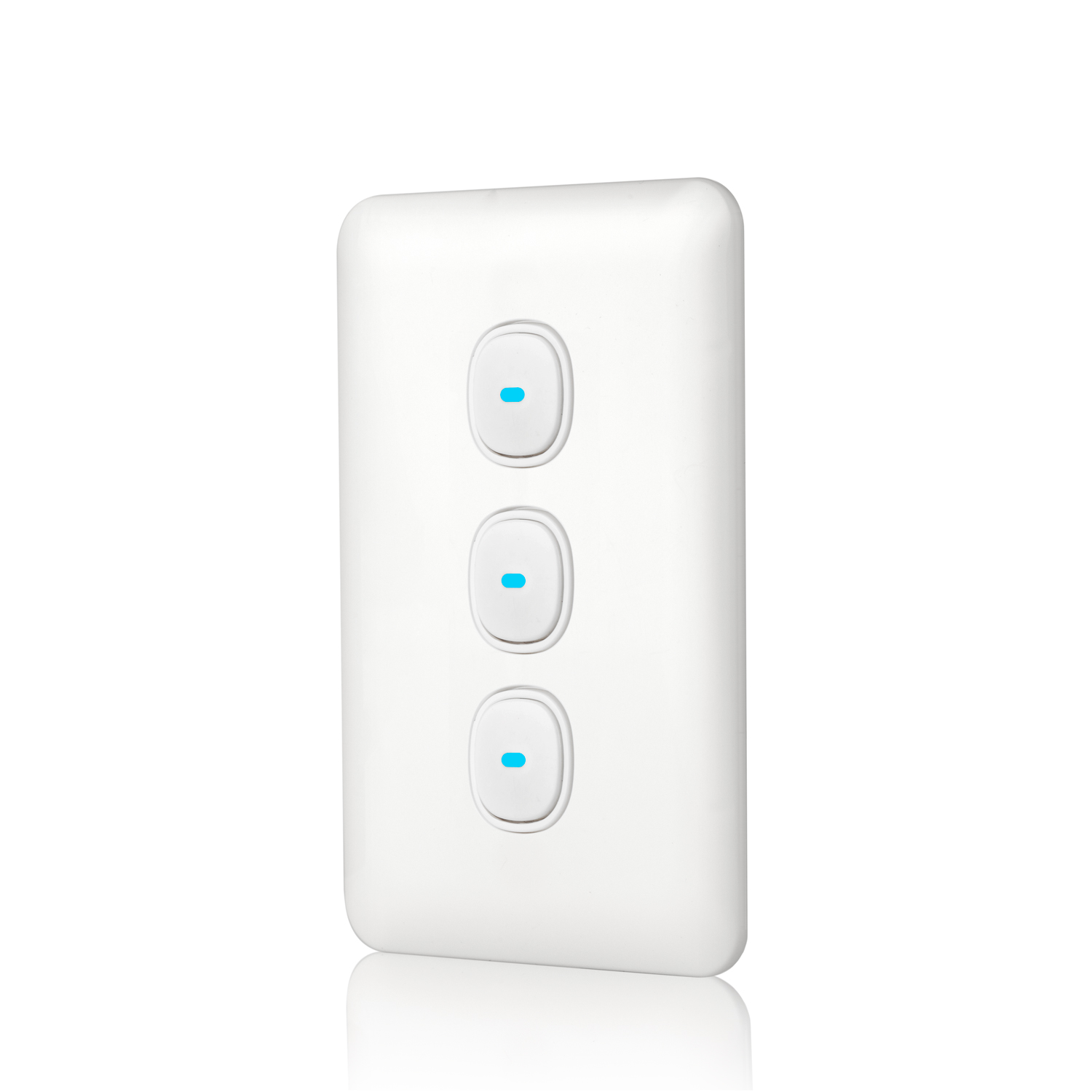

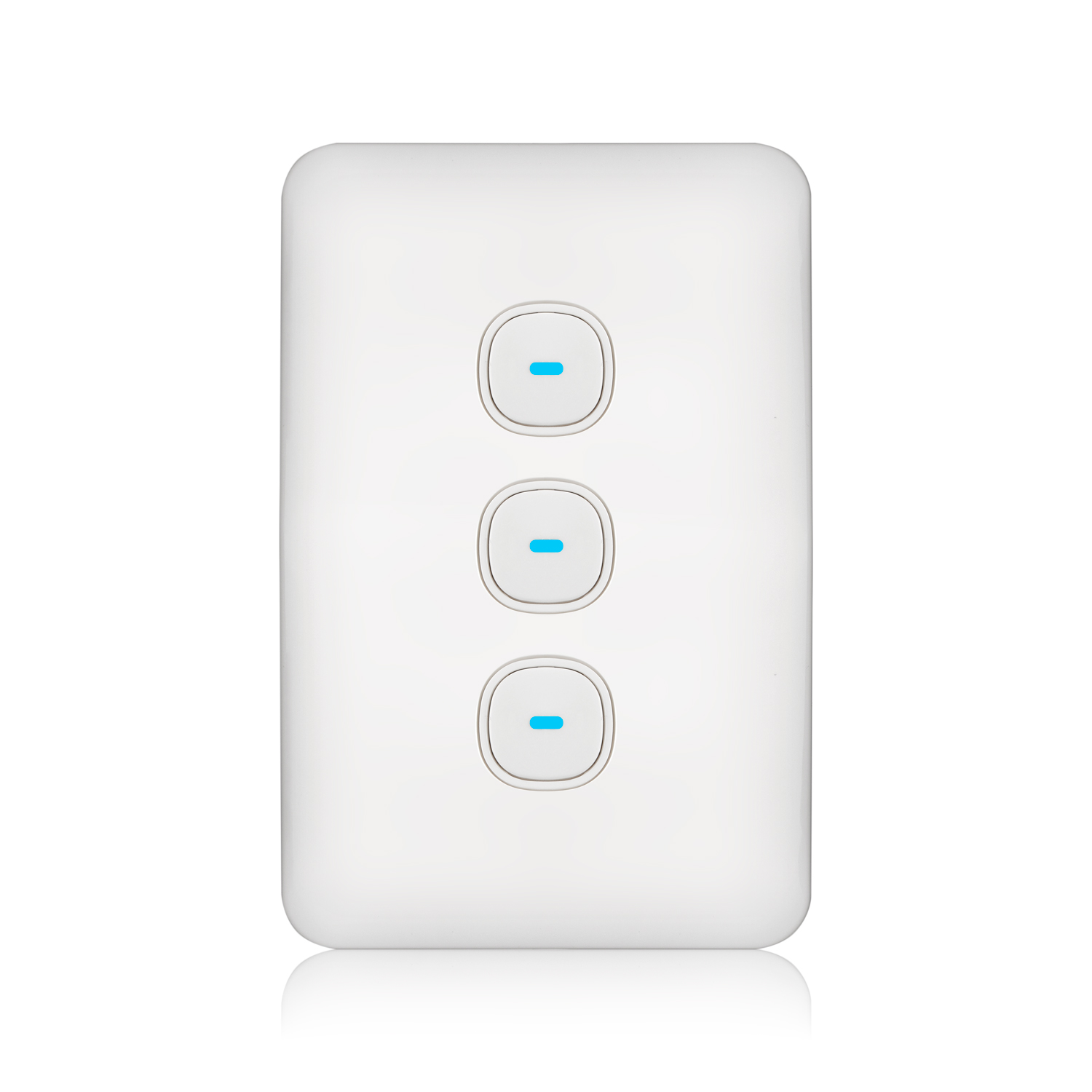

The Transco Slim Elite S3E is a 3-gang switch designed for AC power current and single-phase electrical systems. Rated at 10A and 240V, it provides three individual switching positions in a compact format, making it suitable where multiple switching functions are required within a single wall plate.

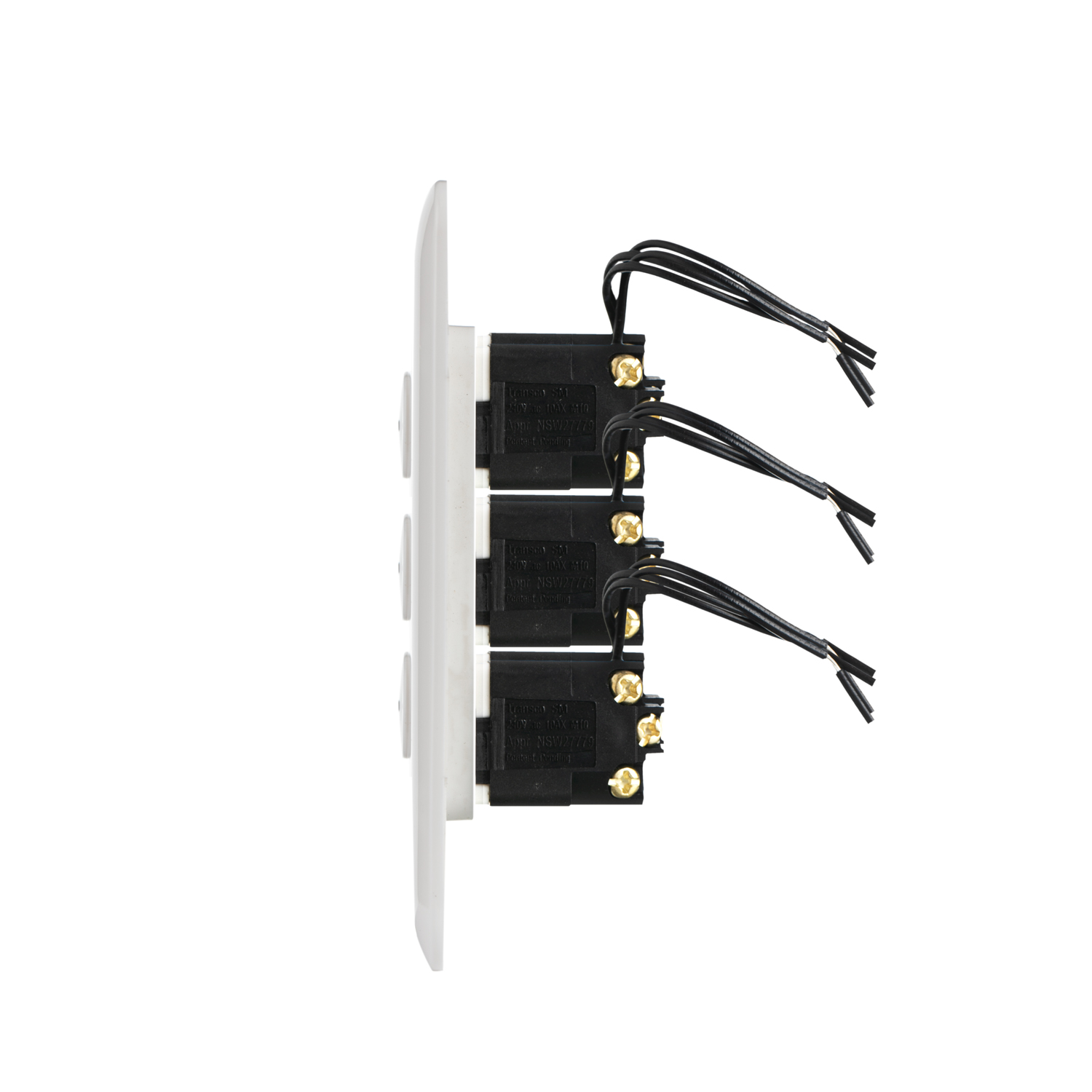

With a slim 20mm depth and 72mm x 116mm overall dimensions, the S3E is designed to provide a neat, low-profile installation. Its electrical white finish suits a wide range of residential, commercial and general electrical environments.

Durable Polycarbonate Construction

The switch features a moulded top cover and underbody manufactured from impact-resistant polycarbonate. This construction provides a practical housing for everyday electrical installations while maintaining a clean appearance.

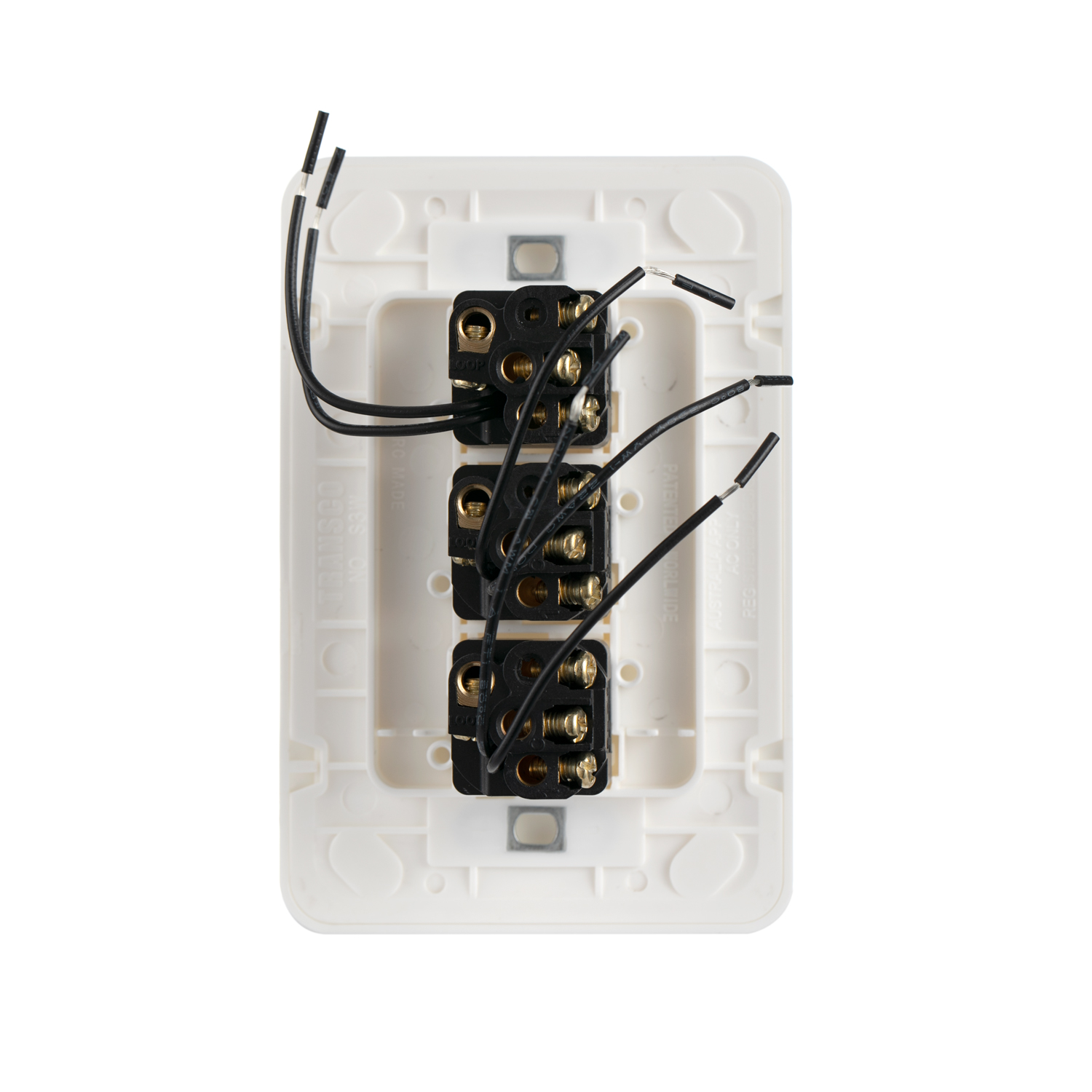

The S3E is configured as a single-pole switch and supports cable sizes of 1.5mm x 4. Its 3-gang arrangement can accommodate multiple switching requirements while keeping the installation consolidated into one switch assembly.

Practical Installation Compatibility

The Transco S3E is designed for horizontal on-wall installation, with 84mm fixing centres. It fits standard brackets for flush mounting, providing flexibility across common installation arrangements. For surface mounting, the switch is compatible only with Transco Wafer Series mounting flanges.

The combination of a compact profile, three-gang configuration and established mounting compatibility makes the Slim Elite S3E a practical choice for electrical contractors working across residential, commercial and maintenance applications.

Key Specs

• Model: S3E
• Configuration: 3 gang
• Rated current: 10A
• Rated voltage: 240V
• Electrical system: AC, single-phase
• Switch type: Single pole
• Material: Impact-resistant polycarbonate
• Colour: Electrical white
• Dimensions: W72mm x L116mm x D20mm
• Cable capacity: 1.5mm x 4
• Mounting orientation: Horizontal
• Fixing centres: 84mm
• Flush mounting: Fits standard brackets
• Surface mounting: Compatible with Transco Wafer Series mounting flanges
• Standards: AS/NZS 3100, AS/NZS 3112 and AS/NZS 3133

Ideal For

• Residential electrical installations
• Commercial fit-outs and refurbishments
• Maintenance and replacement work
• Multi-function switching requirements
• Installations requiring three switch mechanisms
• Flush-mounted applications using standard brackets
• Surface-mounted applications using compatible Transco Wafer Series flanges
