Transco Switch 2 Gang 10a Slim Elite S2E

Description

Slim 2-Gang Design for Everyday Installations

The Transco Switch 2 Gang 10A Slim Elite S2E is designed for a.c. power applications in single-phase electrical systems. Rated at 10A and 240V, this 2-gang switch provides a practical switching solution for residential, commercial and general electrical installations where a slim wall-mounted design is required.

The switch features a moulded top cover and underbody manufactured from impact-resistant polycarbonate. Finished in electrical white, it provides a clean appearance suited to standard interior electrical installations while offering a durable construction for everyday trade use.

Practical Mounting and Installation

With a 20mm depth and dimensions of 72mm wide by 116mm long, the Slim Elite S2E is designed to provide a compact profile when installed on the wall. The switch is mounted horizontally for on-wall installation, with fixing centres positioned at 84mm.

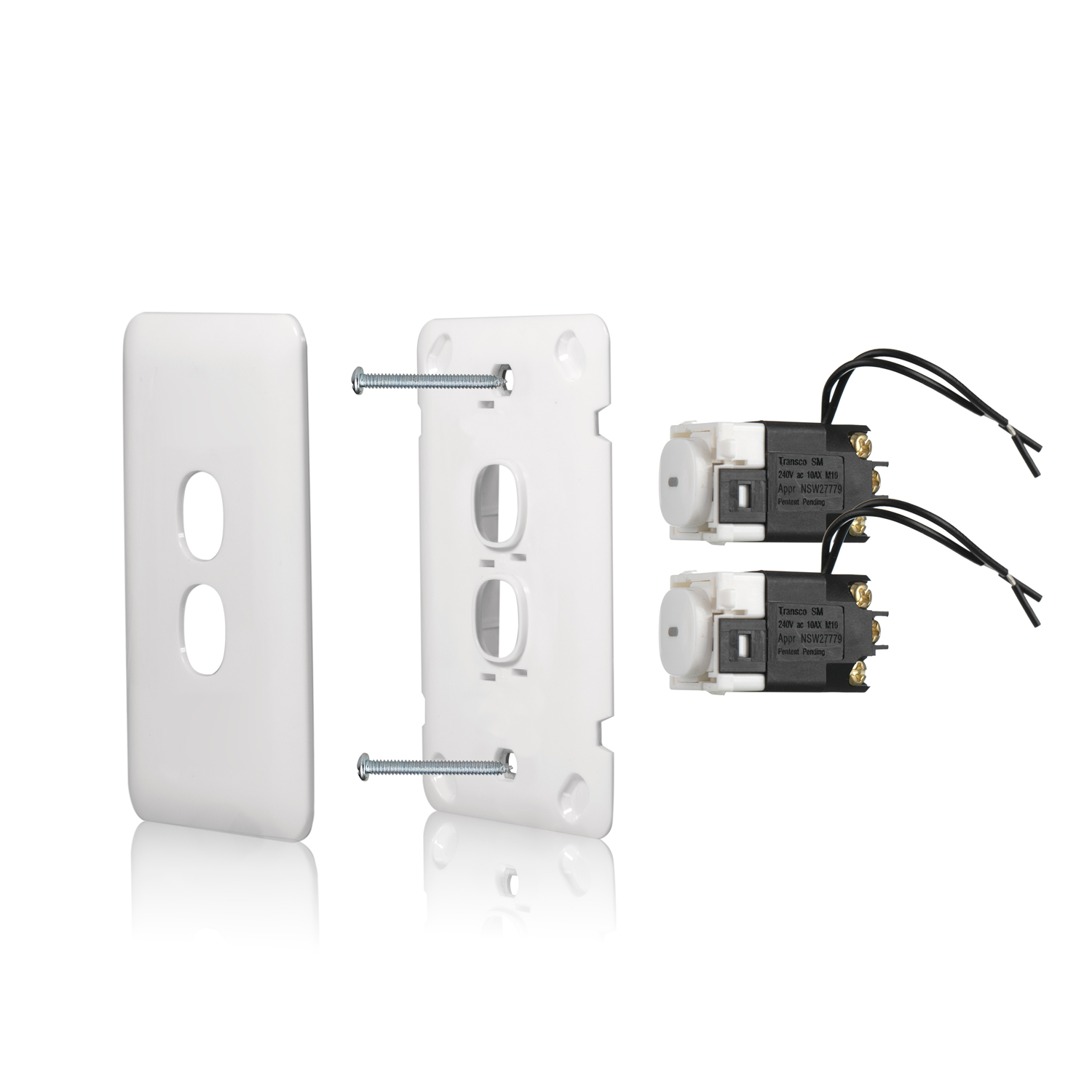

For flush mounting, the switch fits standard brackets. Surface mounting is compatible specifically with Transco Wafer Series mounting flanges, providing an installation option where a surface-mounted configuration is required.

The switch uses a single switch pole and accommodates cables sized 1.5mm x 4. Its 2-gang configuration makes it suitable where two switching positions are required within a single wall plate.

Built for Australian Electrical Applications

The Transco Slim Elite S2E is manufactured for use in Australian electrical installations and complies with AS/NZS 3100, AS/NZS 3112 and AS/NZS 3133. Its combination of a 10A rating, 240V operation, slim construction and flexible mounting compatibility makes it a useful option for electrical contractors working across a range of installation requirements.

Key Specs

• Brand: Transco
• Series: Slim Elite
• Model: S2E
• Configuration: 2 gang
• Rating: 10A
• Voltage: 240V
• Supply: A.C. power, single-phase
• Switch type: Single pole
• Material: Impact-resistant polycarbonate
• Finish: Electrical white
• Dimensions: W72mm x L116mm x D20mm
• Fixing centres: 84mm
• Mounting orientation: Horizontal
• Flush mounting: Fits standard brackets
• Surface mounting: Compatible with Transco Wafer Series mounting flanges
• Cable size: 1.5mm x 4
• Standards: AS/NZS 3100, AS/NZS 3112 and AS/NZS 3133

Ideal For

• Residential electrical installations
• Commercial fit-outs
• General single-phase AC applications
• Electrical contractors and licensed electricians
• On-wall horizontal switch installations
• Flush mounting using standard brackets
• Surface mounting with Transco Wafer Series mounting flanges
• Projects requiring a compact 2-gang switch configuration
