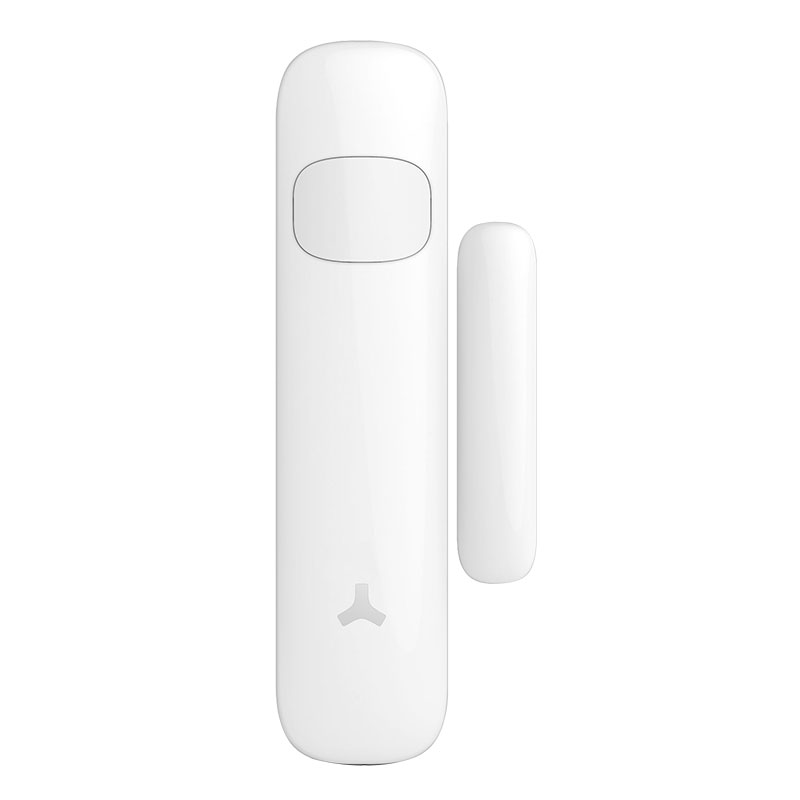

Watchguard Watchguard Force Wireless PIR Sensor + Reed Switch ALL-PIR1

Description

The ALL-PIR1 Wireless PIR Sensor + Reed Switch is an alarm built for indoor environments with a wide angle detection range up to 8m. The ALL-PIR1 combines a PIR motion detector and reed switch, it can detect the opening / closing of windows, doors and human movement.

Product Features:

• Combines PIR sensor and door/window reed switch

• Up to 8m detection range with 90° field of detection

• Features LED light indicator for alarm/battery status

• Tamper switch for vandal protection

• 3VDC power supply, requires 2 x AAAA LR61 batteries

• Up to 12 months of battery life depending on usage

• Monitor and receive alerts to your phone with the Smart Life app

SPECIFICATIONS

General:

Detection Range: 8m range / 90° angle

Wireless Transmit Distance: <80m (open area)

Wireless RF Frequency: 433MHz

Environment:

Power Supply: 3VDC (2 x AAAA LR61 batteries)

Standby Current: <50μA

Alarm Current: <39mA

Operating Environment: -20°C~55°C / RH <80%

Dimensions: 21 x 90 x 18mm (detector) / 10 x 45 x 11mm (magnet)

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product and packages

Width: 25mm

Height: 110mm

Depth: 60mm

Weight: 0.05kg
