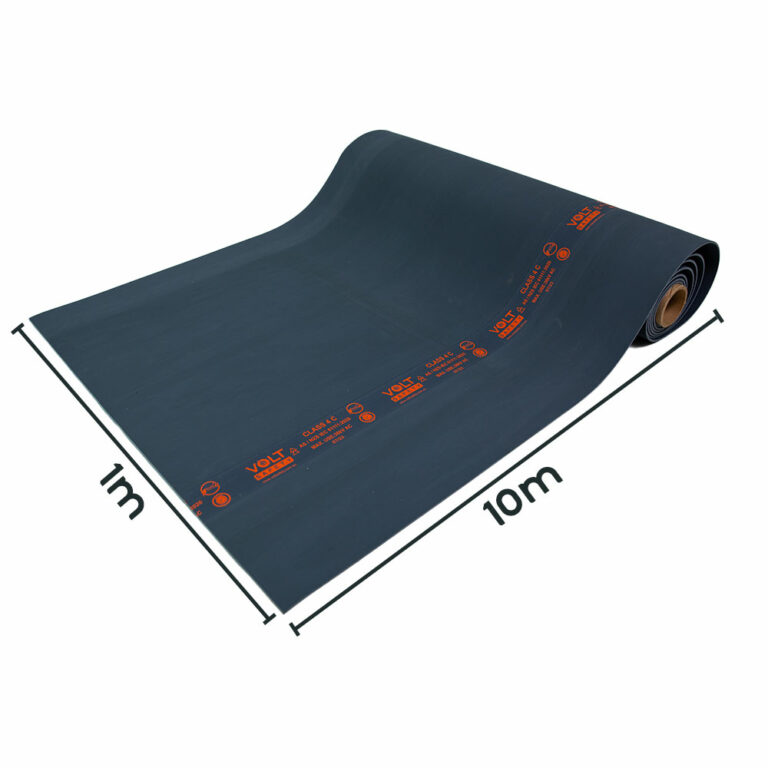

Insulated Mat Roll 1m x 10m Class 4 36kV AS/NZS IEC 61111 – Volt Safety MAT-4-R10

Description

Class 4 Insulated Mat for Electrical Safety

The Volt Safety MAT-4-R10 Insulated Mat Roll provides a practical insulating barrier between the operator and the ground during electrical work. Measuring 1m x 10m and rated Class 4 to 36kV, this electrical insulated mat is designed for demanding professional applications where reliable protection and extensive floor coverage are required. Its 5mm thickness provides a substantial insulating surface for work areas.

Manufactured from flexible EPDM rubber, the mat is designed to maintain flexibility while providing resistance to ozone cracking. The grey surface features an anti-slip finish on both sides, helping provide stable footing when positioned around electrical work areas. Its C-rated construction also provides resistance to extremely low temperatures, supporting use across demanding working environments.

Durable Construction and Certified Performance

The Volt Safety insulated mat is manufactured to AS/NZS IEC 61111 and IEC 61111 requirements, making it a suitable choice for professional electrical applications where compliant insulating equipment is essential. Its Class 4 rating and 36,000V specification provide high-level electrical insulation for appropriate work environments.

The 1m-wide, 10m-long roll provides generous coverage compared with smaller individual mats, making it practical for larger work zones. The mat weighs 86kg per metre and can be supplied with an optional roll-up style bag to help protect the mat during storage and transport.

Ideal for Professional Electrical Work

The Volt Safety MAT-4-R10 is suited to electricians, contractors and maintenance teams requiring a large-format electrical insulating mat for professional work areas.

Key Specs

• Size: 1m x 10m

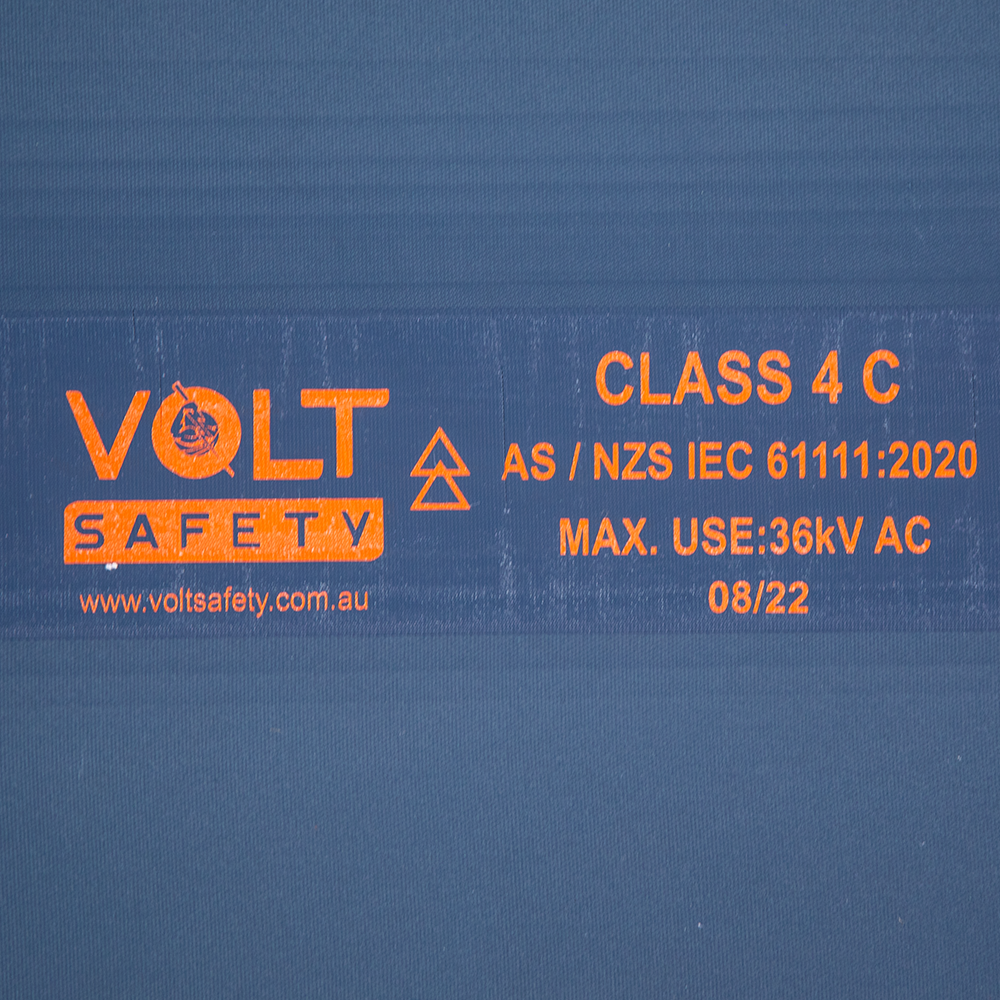

• Class: Class 4, 36,000V
• Thickness: 5mm
• Weight: 86kg per metre
• Colour: Grey
• Material: EPDM rubber
• Finish: Anti-slip on both sides
• Temperature resistance: C – resistant to extremely low temperatures
• Standards: AS/NZS IEC 61111 and IEC 61111

Ideal For

• Electrical contractors and licensed electricians
• Commercial and industrial electrical work
• Maintenance and service environments
• Work areas requiring ground isolation
• Applications requiring Class 4 insulation
• Projects needing extensive 1m-wide mat coverage
• Professionals requiring compliant electrical safety equipment
