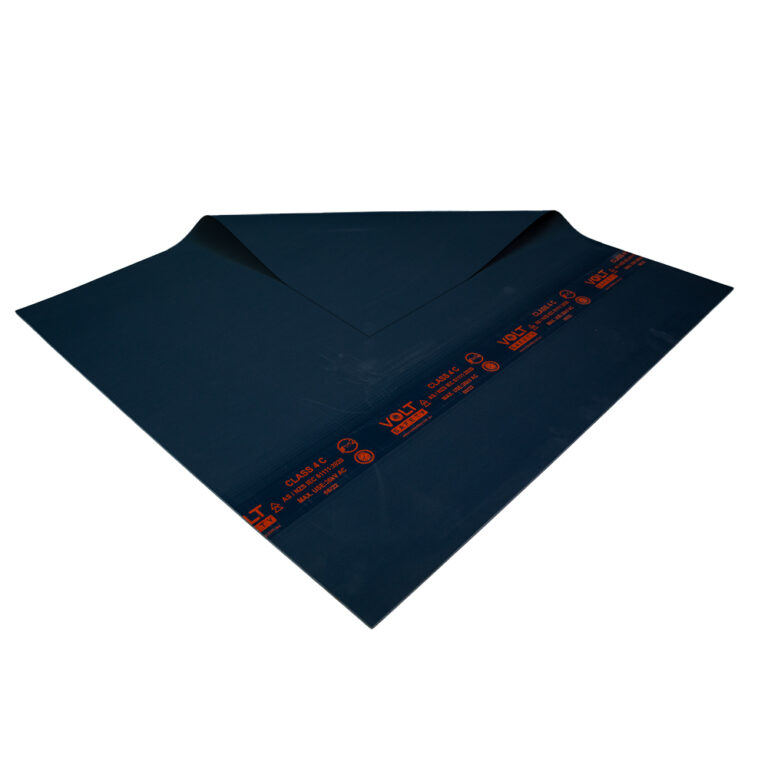

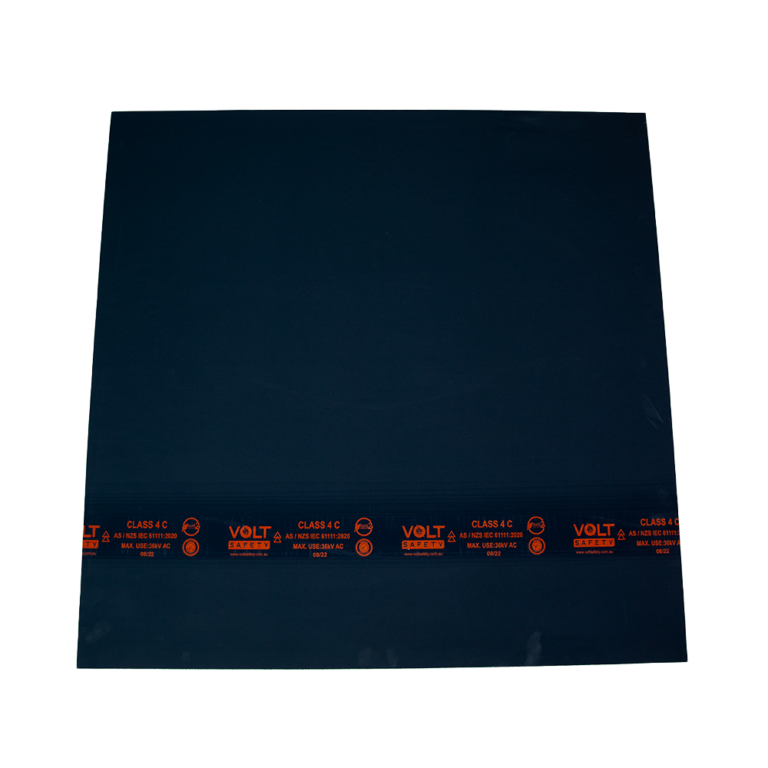

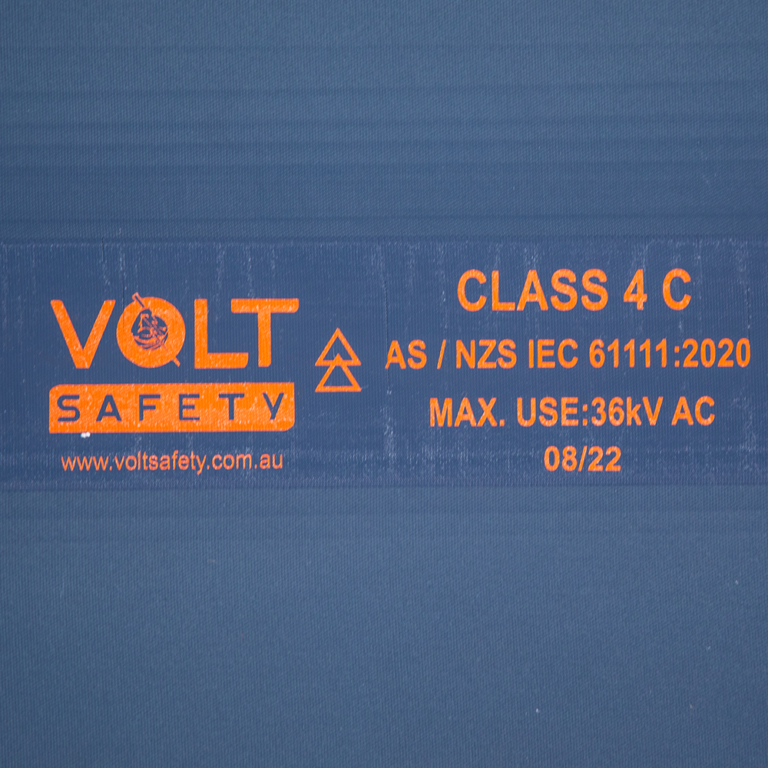

Insulated Mat Class 4 36kV AS/NZS IEC 61111 – Volt Safety MAT-4
$492.73 inc GST
The Volt Safety MAT-4 Class 4 Insulated Mat provides a protective insulating layer between electrical workers and ground during work near high-voltage equipment. Rated to 36kV and manufactured from flexible EPDM rubber, it combines electrical protection, durability and an anti-slip surface for demanding electrical, industrial, maintenance and facilities professional worksites.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description
Class 4 Insulation for High-Voltage Work
Designed for high-voltage electrical safety applications, the MAT-4 is a Class 4 insulated mat rated to 36,000V. It helps isolate the operator from ground potential, providing an insulating barrier between the worker and the ground when working in environments where electrical hazards may be present. The 5mm-thick mat provides a substantial protective surface while remaining flexible enough for practical workplace use.
Durable EPDM Construction and Anti-Slip Protection
Manufactured from EPDM rubber, the MAT-4 is designed to maintain flexibility while providing reliable protection against ozone cracking. Its anti-slip finish on both sides helps provide secure footing and keeps the mat practical for demanding electrical work areas. The mat is also resistant to extremely low temperatures, making it suitable for applications where environmental conditions can vary.
Flexible Sizing for Trade Applications
The standard 1m x 1m format provides a convenient insulating surface for electrical work areas, while custom sizing up to 1m x 10m can be requested for larger or specialised applications. A roll-up style bag is also available to help protect the mat during storage and transport, extending its usable life. For larger requirements, a 1m x 10m mat roll is available.
Key Specs
- Class 4 insulation rating
- Rated to 36,000V
- Size: 1m x 1m
- Thickness: 5mm
- Weight: 8.6kg per metre
- Colour: Grey
- Material: EPDM rubber
- Anti-slip finish on both sides
- Resistant to extremely low temperatures
- Standards: AS/NZS IEC 61111 and IEC 61111
- Custom sizing available up to 1m x 10m on request
Ideal For
- Licensed electricians working around high-voltage equipment
- Electrical contractors and maintenance professionals
- Industrial electrical work areas
- Worksites requiring Class 4 insulation
- Applications requiring AS/NZS IEC 61111 compliant insulating mats
- Projects needing custom mat sizing
- Teams requiring convenient storage and transport options
