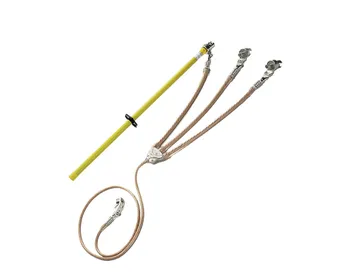

DEHN OH Earth Set 95/35 mm2 D-795604-S-SET

Description

DEHN OH Earth Set for Overhead Earthing

The DEHN OH Earth Set D-795604-S-SET is a German-engineered earthing solution designed for electrical work involving overhead conductors. This high-quality copper trifurcating earthing cable set combines the essential clamps and cable tails required for establishing a temporary earthing connection during maintenance and electrical work.

The set is configured around a 7 m earth tail with universal overhead conductor clamps and 2 m A/B/C tails. Its components are designed to provide a practical connection arrangement for overhead earthing applications where reliable temporary grounding is required.

With its 95/35 mm² configuration and purpose-built DEHN components, this earth set is suited to professional electrical environments where dependable earthing equipment is required as part of safe work procedures.

Designed for Professional Electrical Applications

The included D-773331 Uni T-pin Shaft Long clamp and three D-784085 overhead cable clamps provide the connection hardware required for the set’s intended overhead earthing arrangement. The D-784085 clamps accommodate OH cables from 10–85 mm in diameter.

The 7 m earth tail provides reach for suitable installation configurations, while the 2 m A/B/C tails support the trifurcating arrangement. As with all earthing equipment, the set should be selected, installed and used by appropriately qualified personnel in accordance with applicable procedures and requirements.

A Practical Earthing Set for Trade and Maintenance Work

The DEHN OH Earth Set is suited to professional electrical contractors and maintenance teams who need purpose-designed equipment for overhead conductor earthing applications. Its supplied components provide a convenient packaged solution rather than requiring each cable and clamp to be sourced separately.

Before ordering, confirm the conductor dimensions, earthing arrangement and application requirements to ensure the set is appropriate for the intended work. An earthing rod is not included and must be provided separately where required by the installation or work procedure.

Key Specs

• DEHN OH Earth Set D-795604-S-SET
• German-engineered earthing equipment
• High-quality copper trifurcating earthing cable set
• 95/35 mm² configuration
• 7 m earth tail
• 2 m A/B/C tails
• 1 × D-773331 Uni T-pin Shaft Long clamp
• 3 × D-784085 clamps for OH cable, 10–85 mm diameter
• Universal overhead conductor clamps
• Earthing rod not included

Ideal For

• Licensed electricians and electrical contractors
• Overhead electrical maintenance work
• Temporary earthing applications
• Electrical utility and infrastructure maintenance
• Professional overhead conductor work
• Contractors requiring a complete DEHN overhead earthing set
• Maintenance teams working with compatible OH cable sizes
